Fuel Pump Relay: Service and Repair

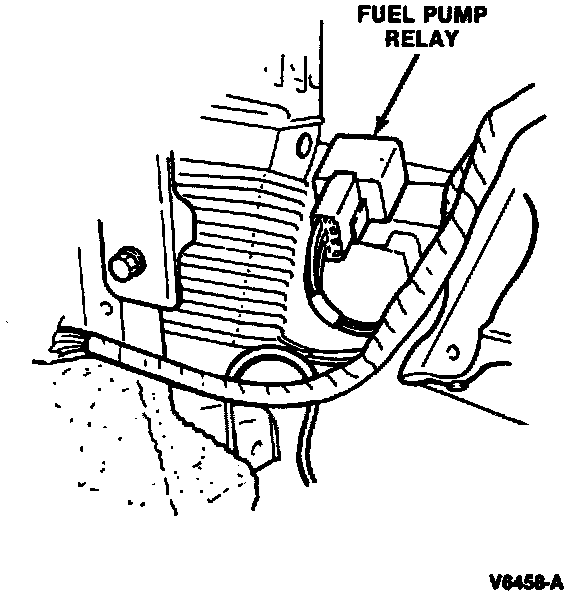

Fuel Pump Relay:

1. Disconnect battery ground cable.
2. Pull rearward on the front edges of the center carpet panel and disengage the push pin retainers.
3. Remove attaching screw and carpet panel.
4. Disconnect the relay electrical connector.
5. Remove relay retaining bolt and the relay.
6. Reverse procedure to install.
