Idle/Throttle Speed Control Unit: Locations

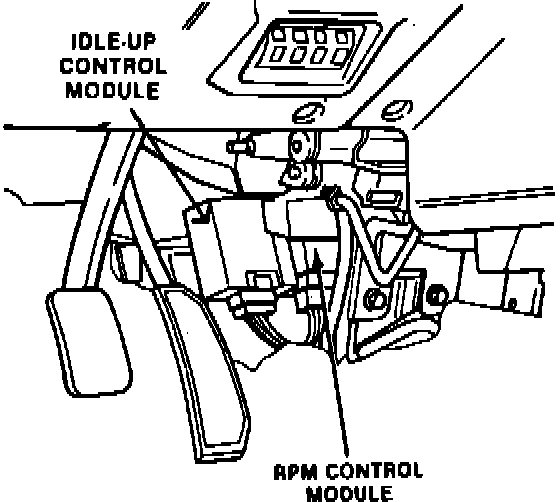

Idle-Up & RPM Control Module Location:




Under Center Of I/P
