Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> IGN 8 System Check - With Engine Analyzer Equipment >> Test 2 Secondary Display >> Test Step 8C

Test Step 8C

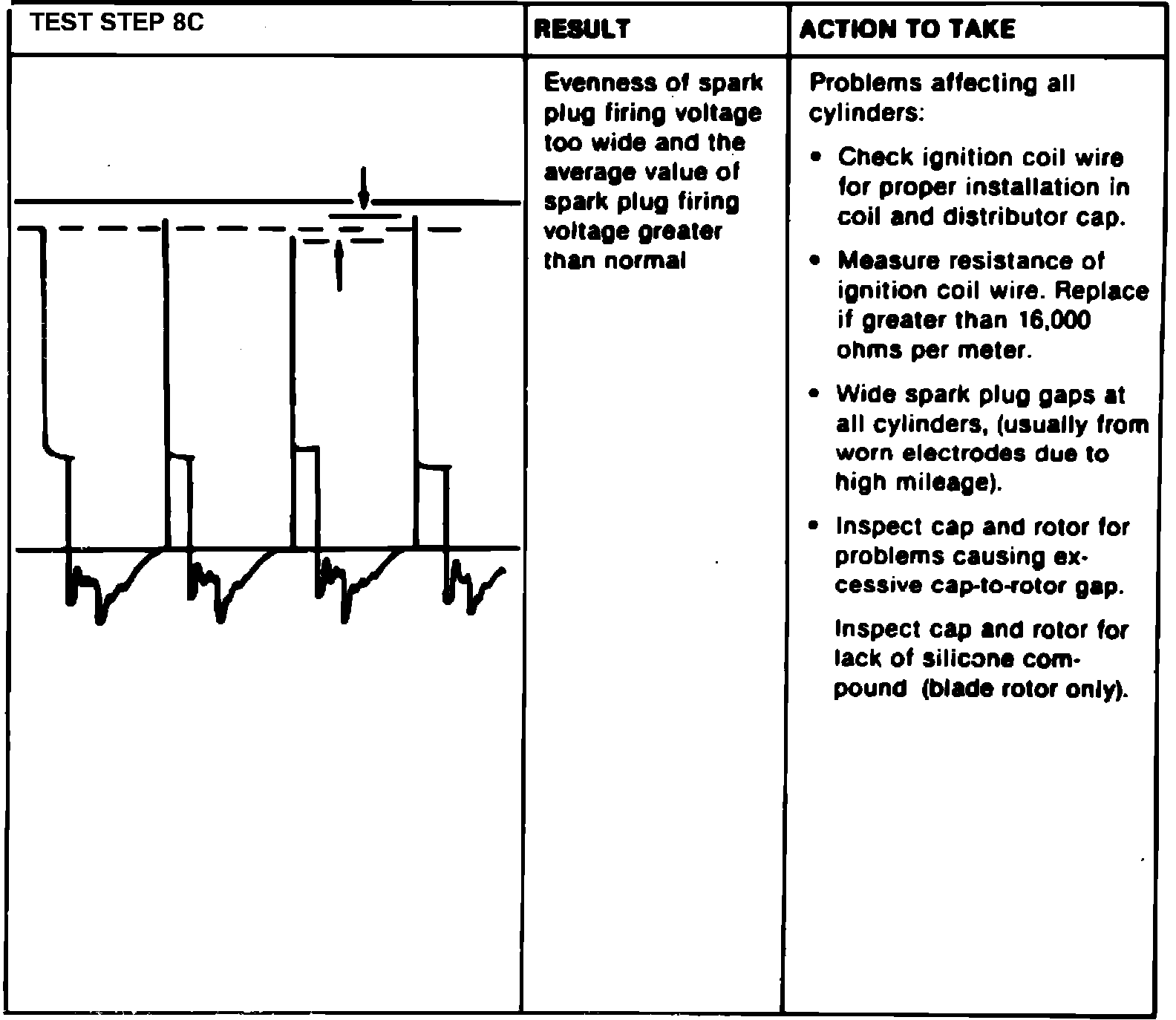

Fig. 8e Ignition system diagnosis, system check using engine analyzer (Part 5 of 10):
