Tracer L4-1589cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
IGN 8 System Check - With Engine Analyzer Equipment
>>
Preliminary Checkout and Required Equipment
Preliminary Checkout and Required Equipment

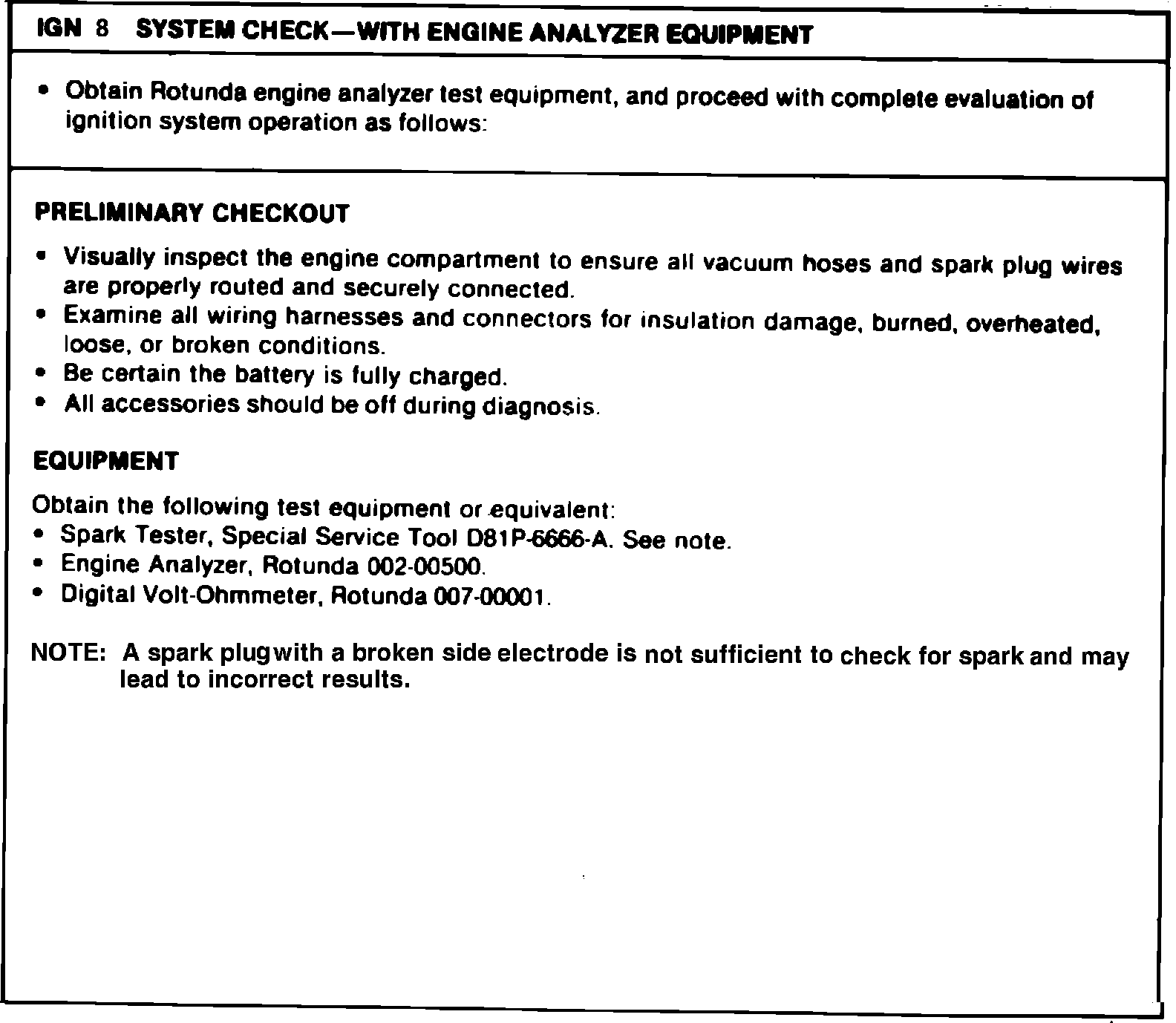

Fig. 8a Ignition system diagnosis, system check using engine analyzer (Part 1 of 10):
