IGN 5 Distributor Assembly Inspection

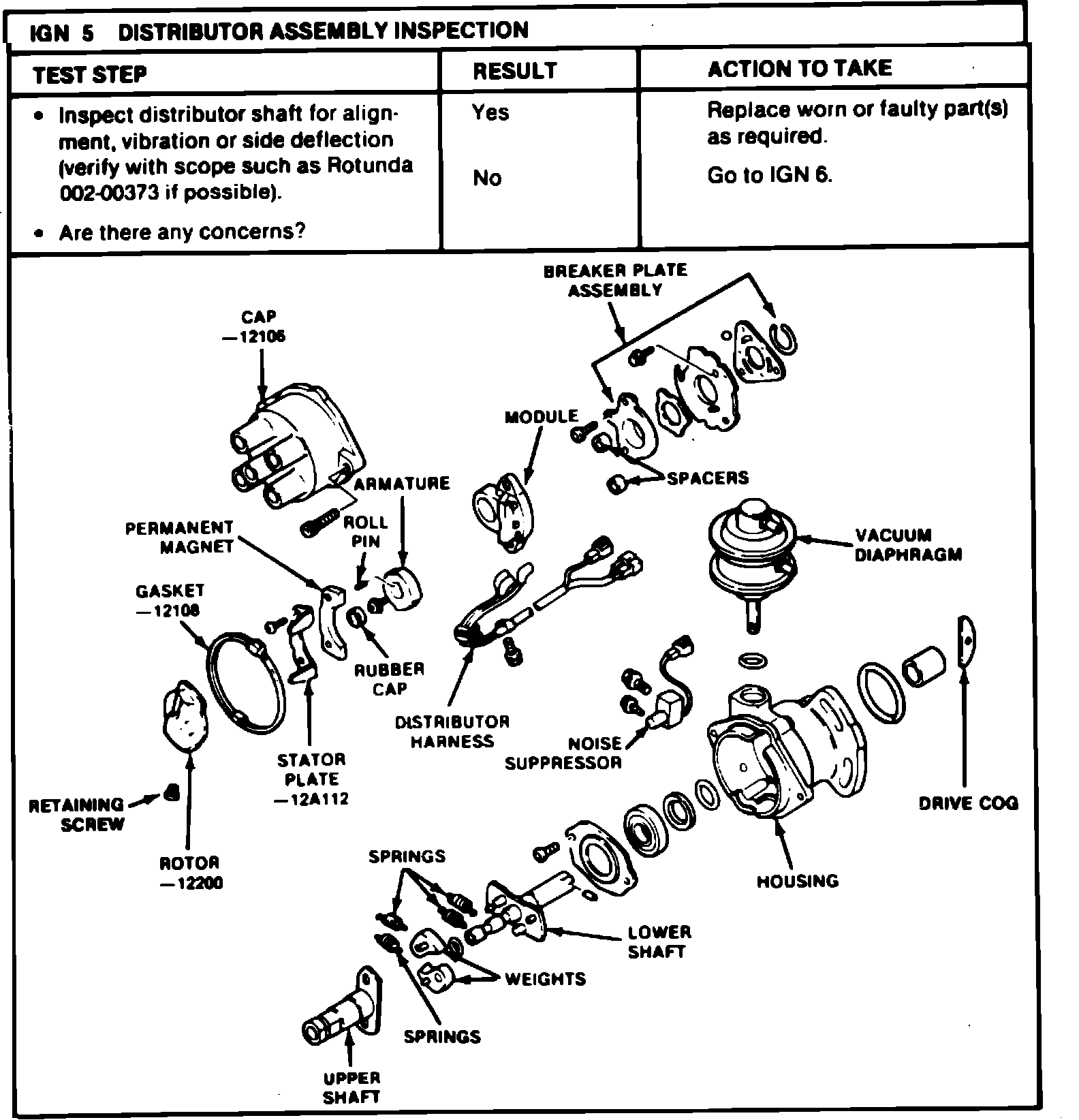

Fig. 5 Ignition system diagnosis (distributor assembly inspection):
