IGN 4 Distributor Inspection
IGN 4 Distributor Inspection

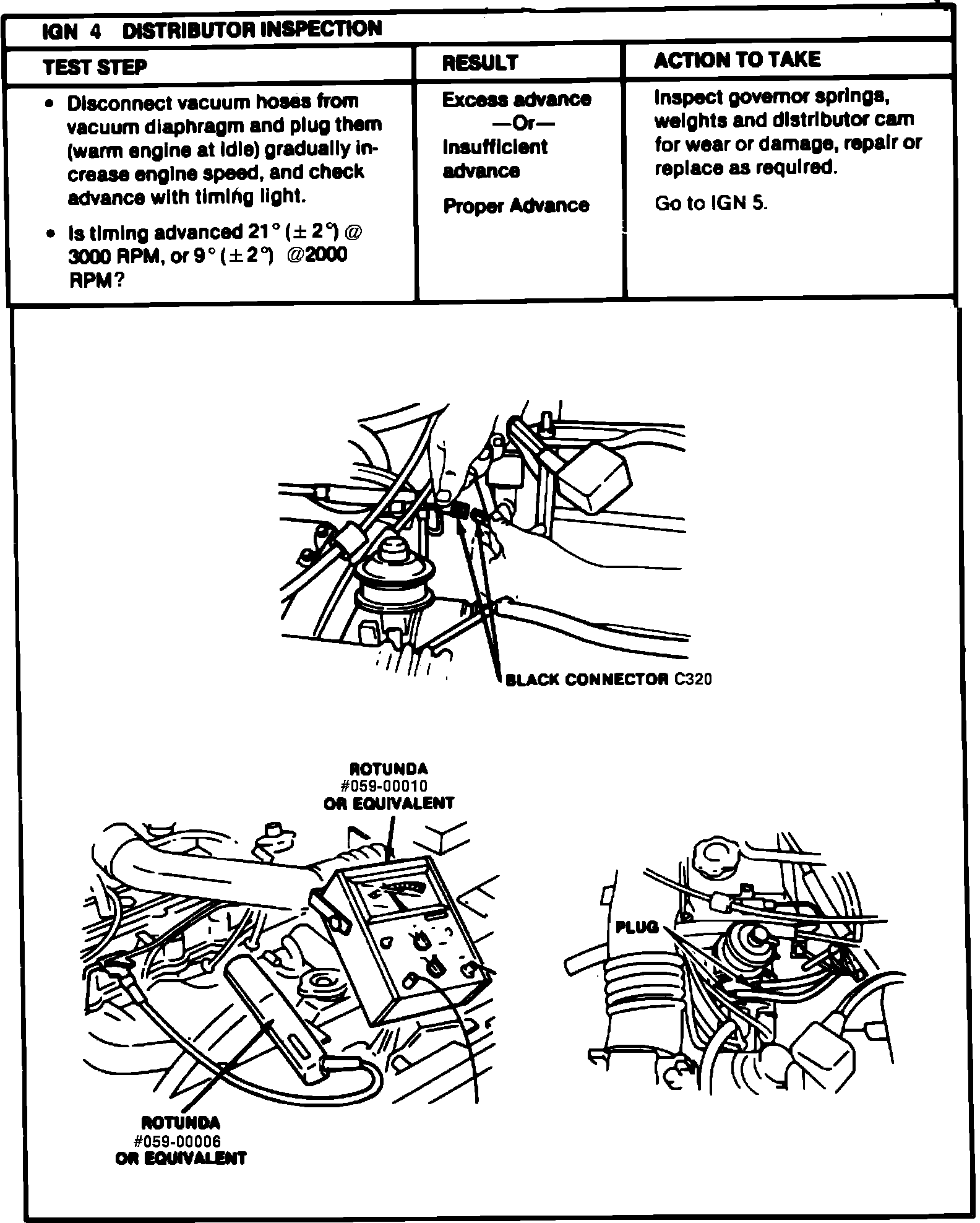

Fig. 4 Ignition system diagnosis (distributor inspection):
