IGN 13 Ignition Coil Test/Continuity Check
IGN 13 Ignition Coil Test/Continuity Check

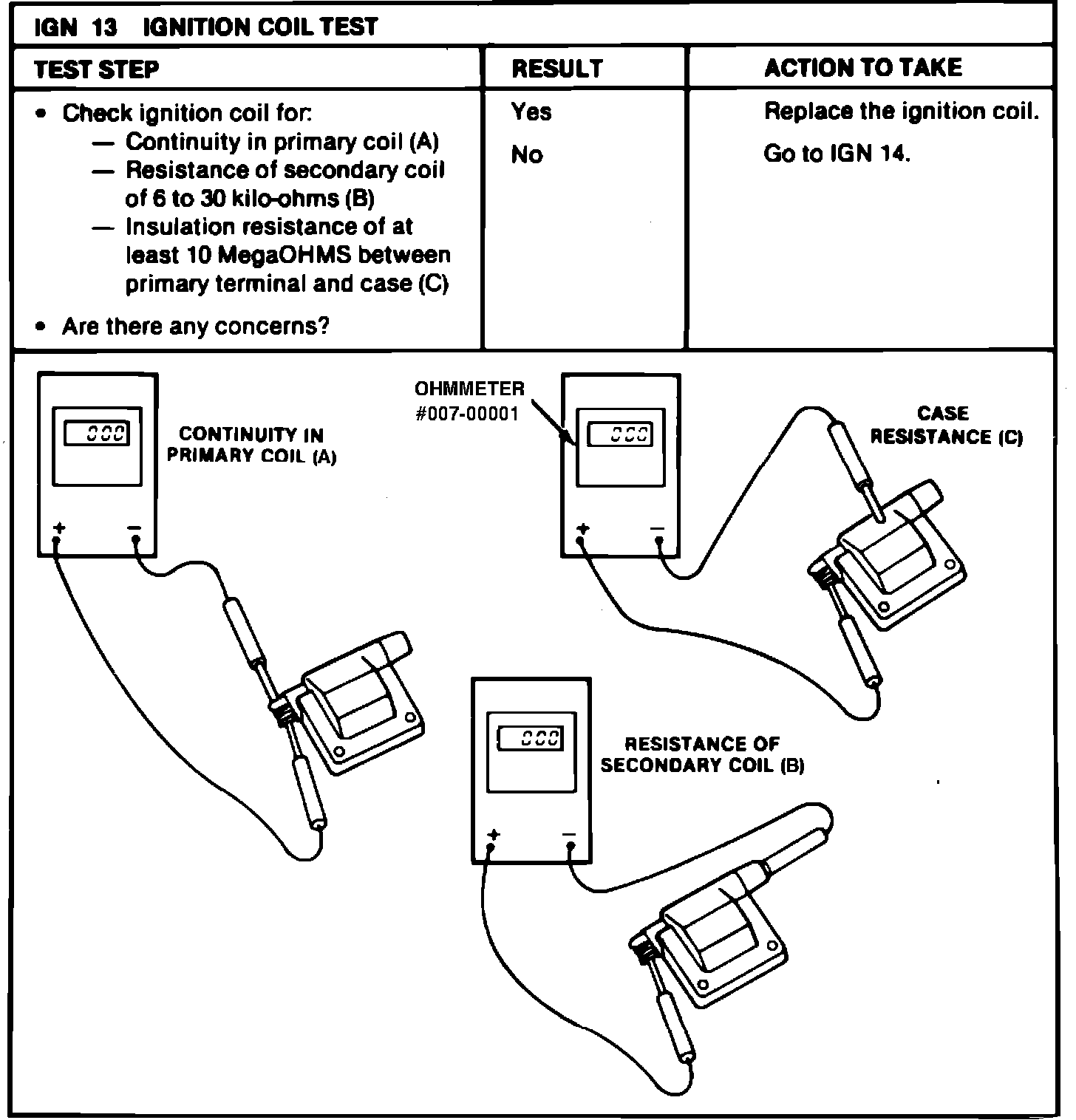

Fig. 13 Ignition system diagnosis (ignition coil test/continuity check):
