IGN 12 Check For Electrical Short
IGN 12 Check For Electrical Short

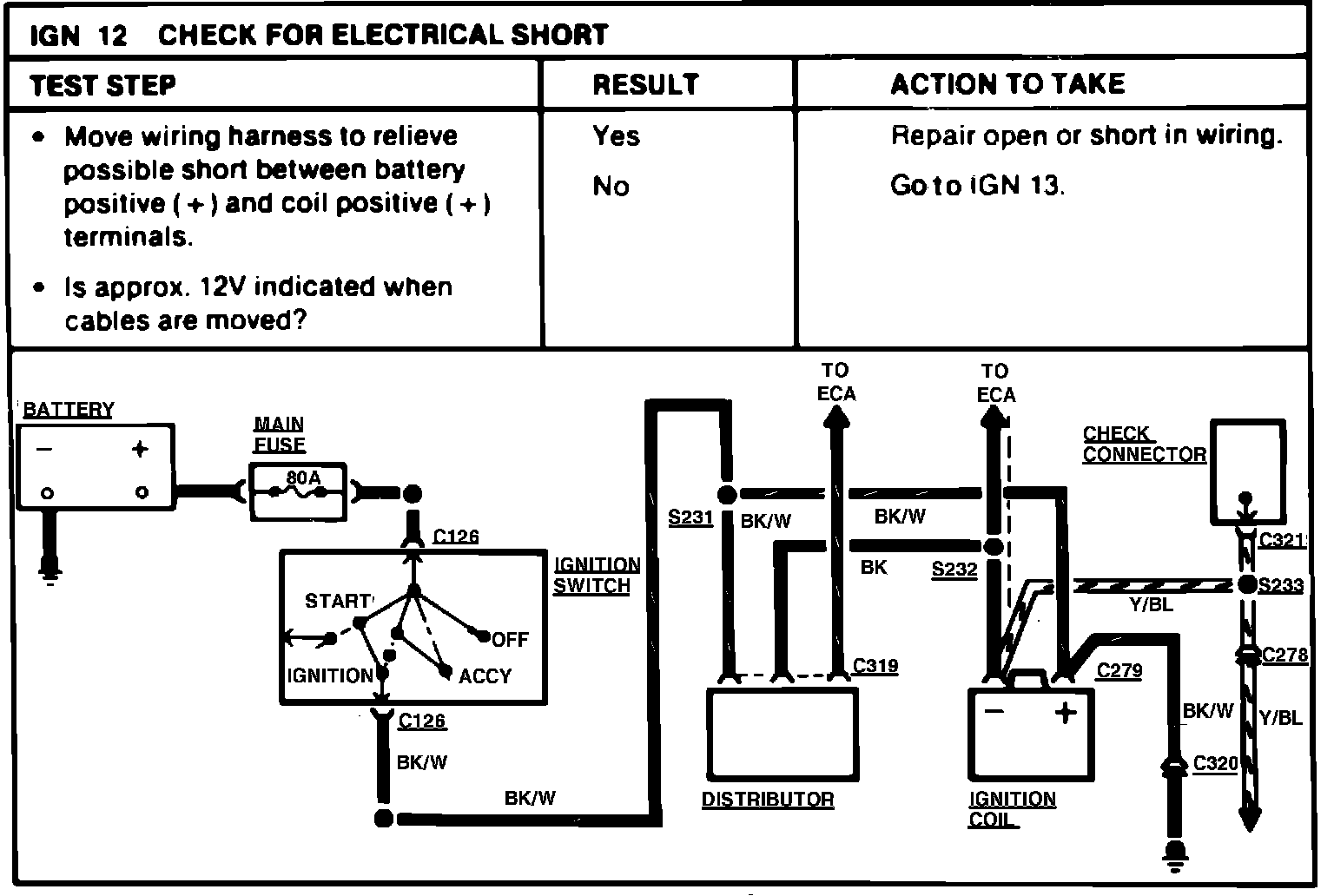

Fig. 12 Ignition system diagnosis (electrical short check):
