IGN 11 Ignition Coil Test/Negative Lead
IGN 11 Ignition Coil Test/Negative Lead

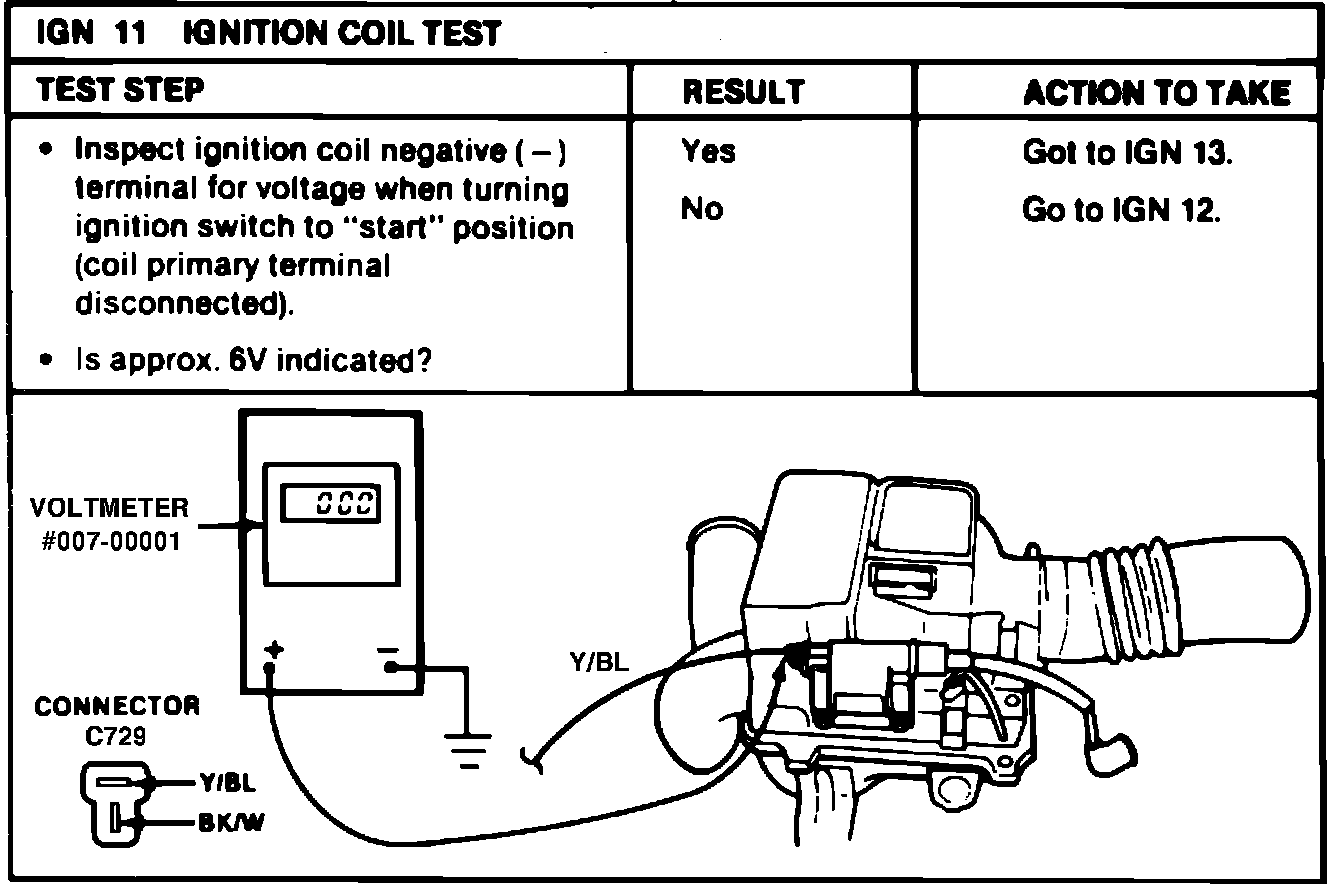

Fig. 11 Ignition system diagnosis (ignition coil test/negative lead):
