Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Idle - Idle-Up System >> Idle 6 - A/C Wiring Inspection

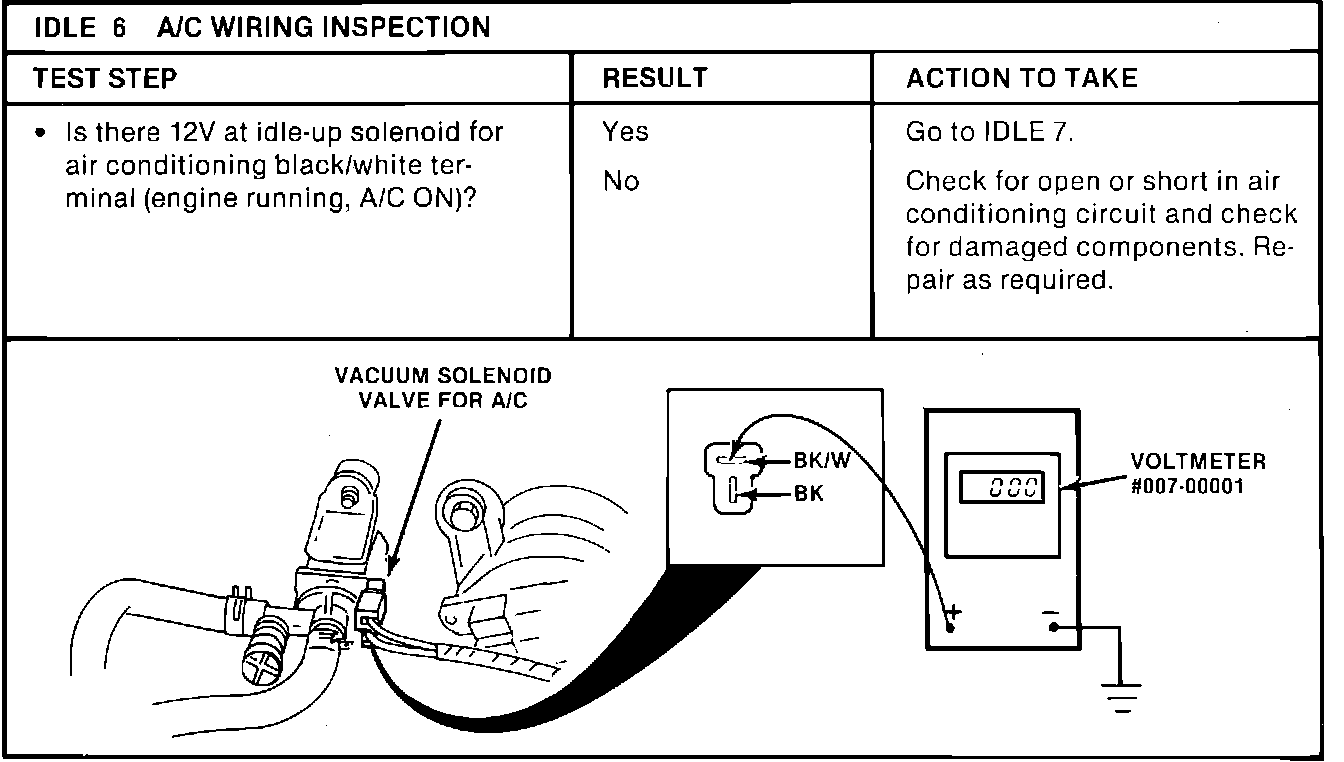

Idle 6 - A/C Wiring Inspection

IDLE 6 - Idle-Up System:
