Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FDS 2 - Fuel Pump Pressure Test

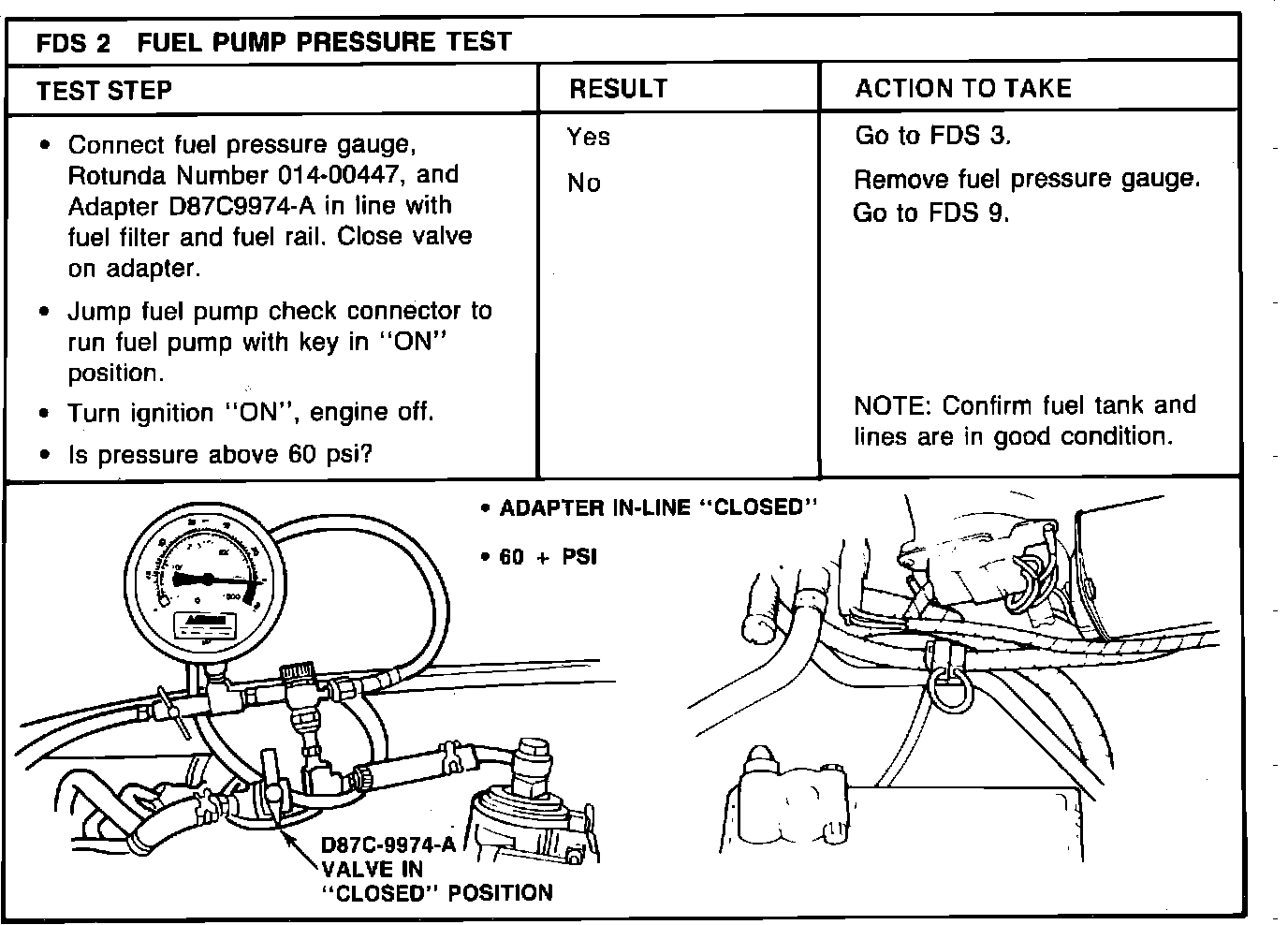

FDS 2 - Fuel Pump Pressure Test

FDS 2 - Fuel Delivery System:
