Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FDS 15 - Power Supply Check

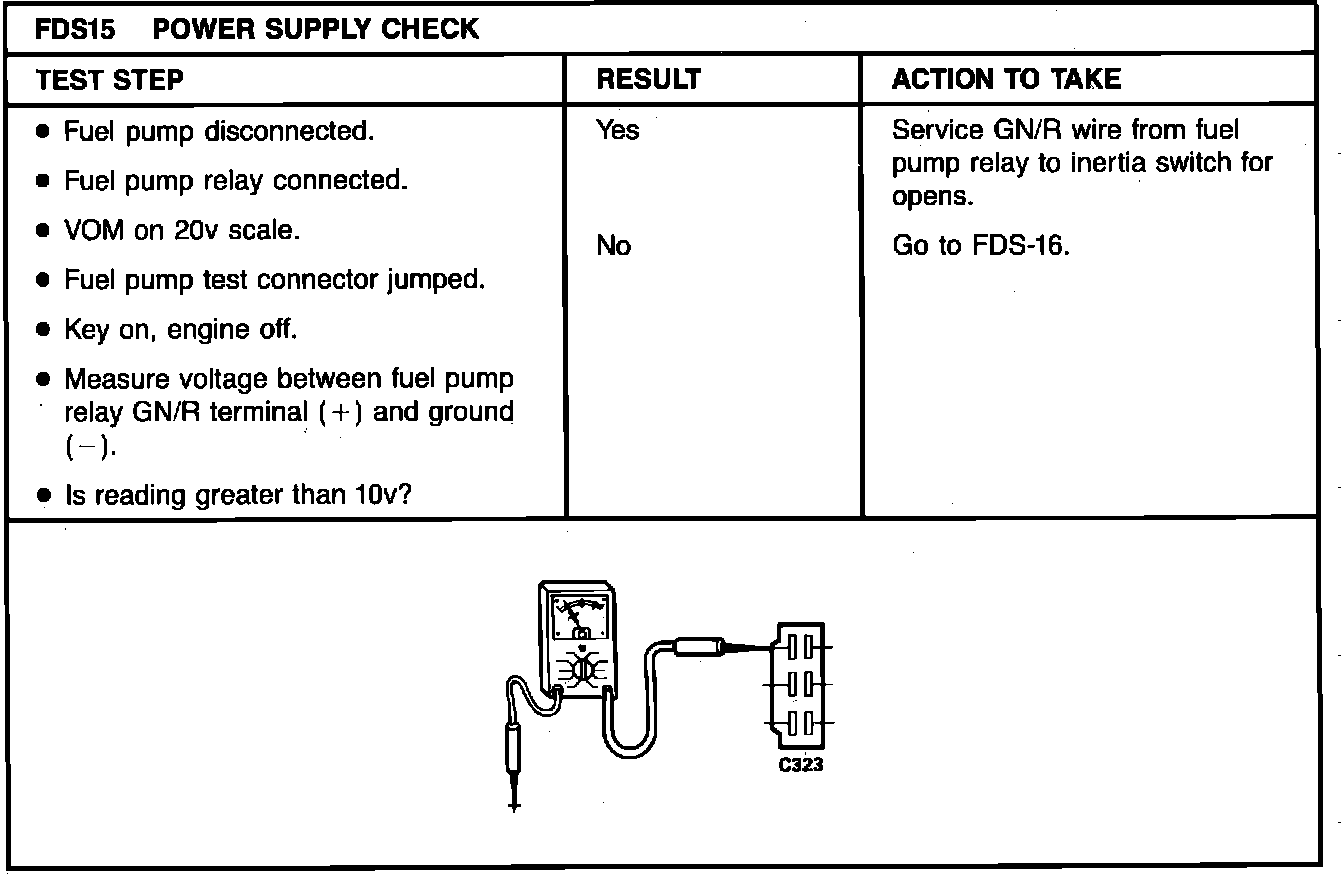

FDS 15 - Power Supply Check

FDS 15 - Fuel Delivery System:
