ACDS - Air Cleaner & Duct System
>>

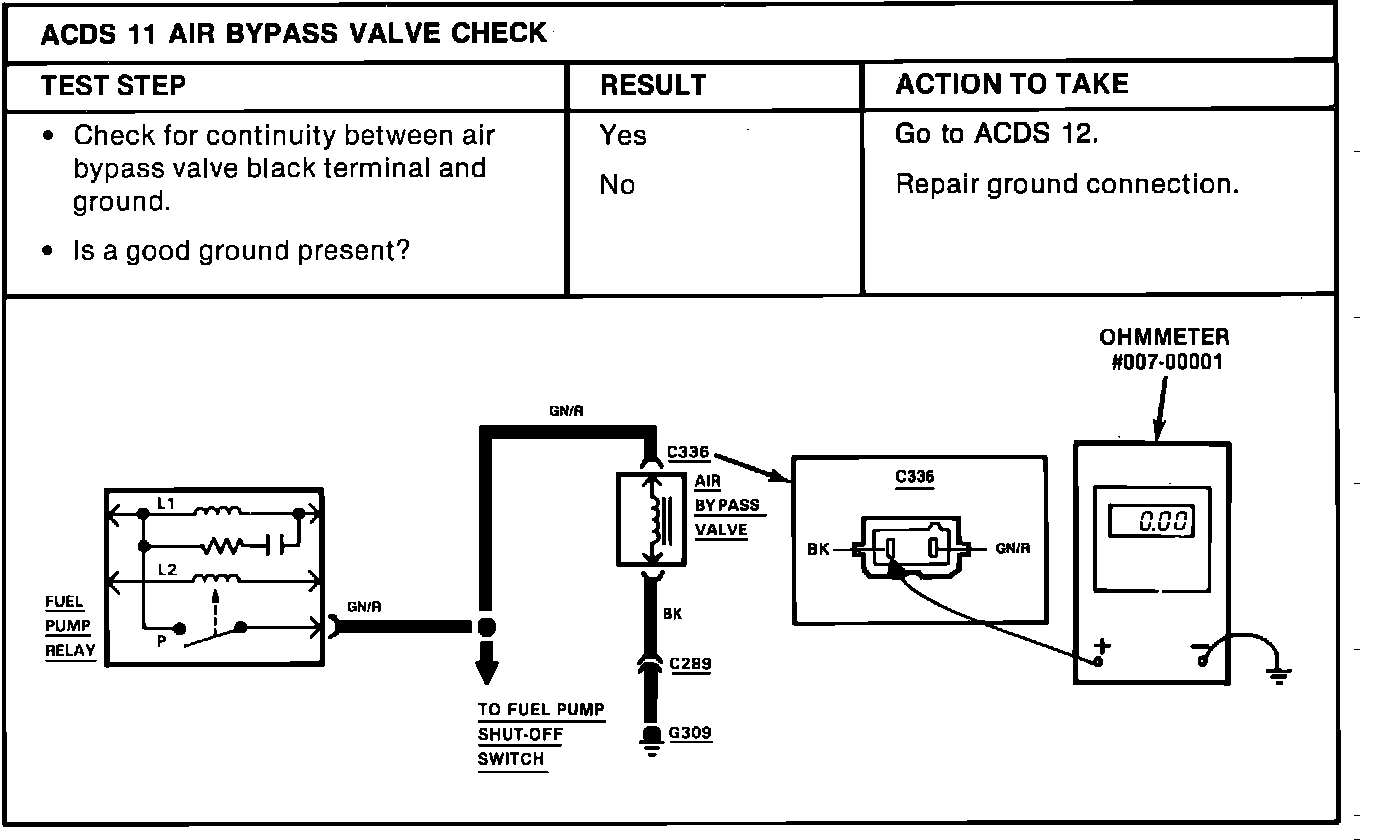

ACDS 11 - Air Bypass Valve Check
ACDS 11 - Air Bypass Valve Check
ACDS 11 - Air Cleaner & Duct System:
