DF - Barometric Pressure Sensor
>>
DF6 - DF7
DF6 - DF7

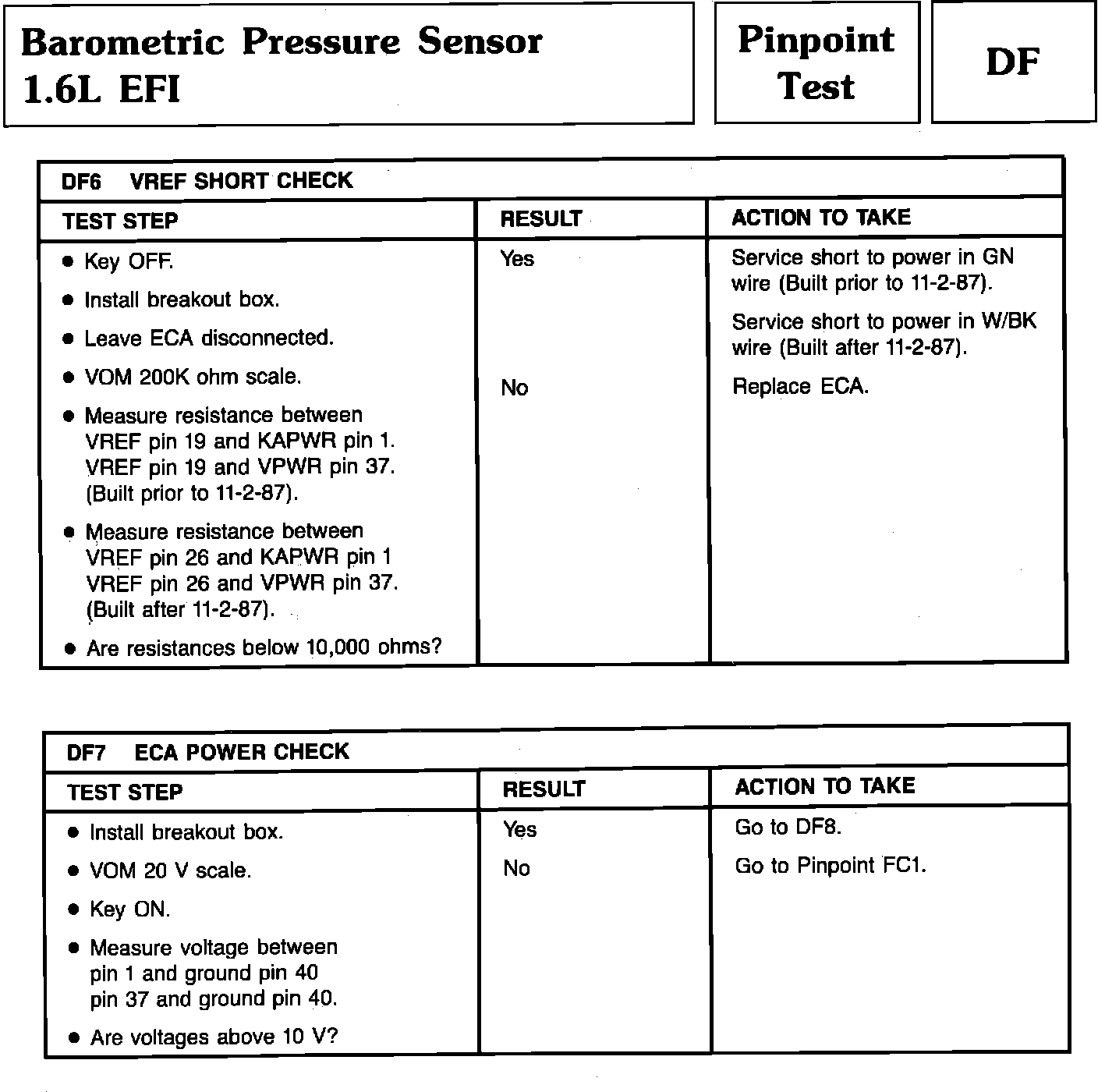

Pinpoint Test DF6 & DF7 - Barometric Pressure Sensor:
