Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> A - No Start (Ignition Pulse) >> A7 - A9

A7 - A9

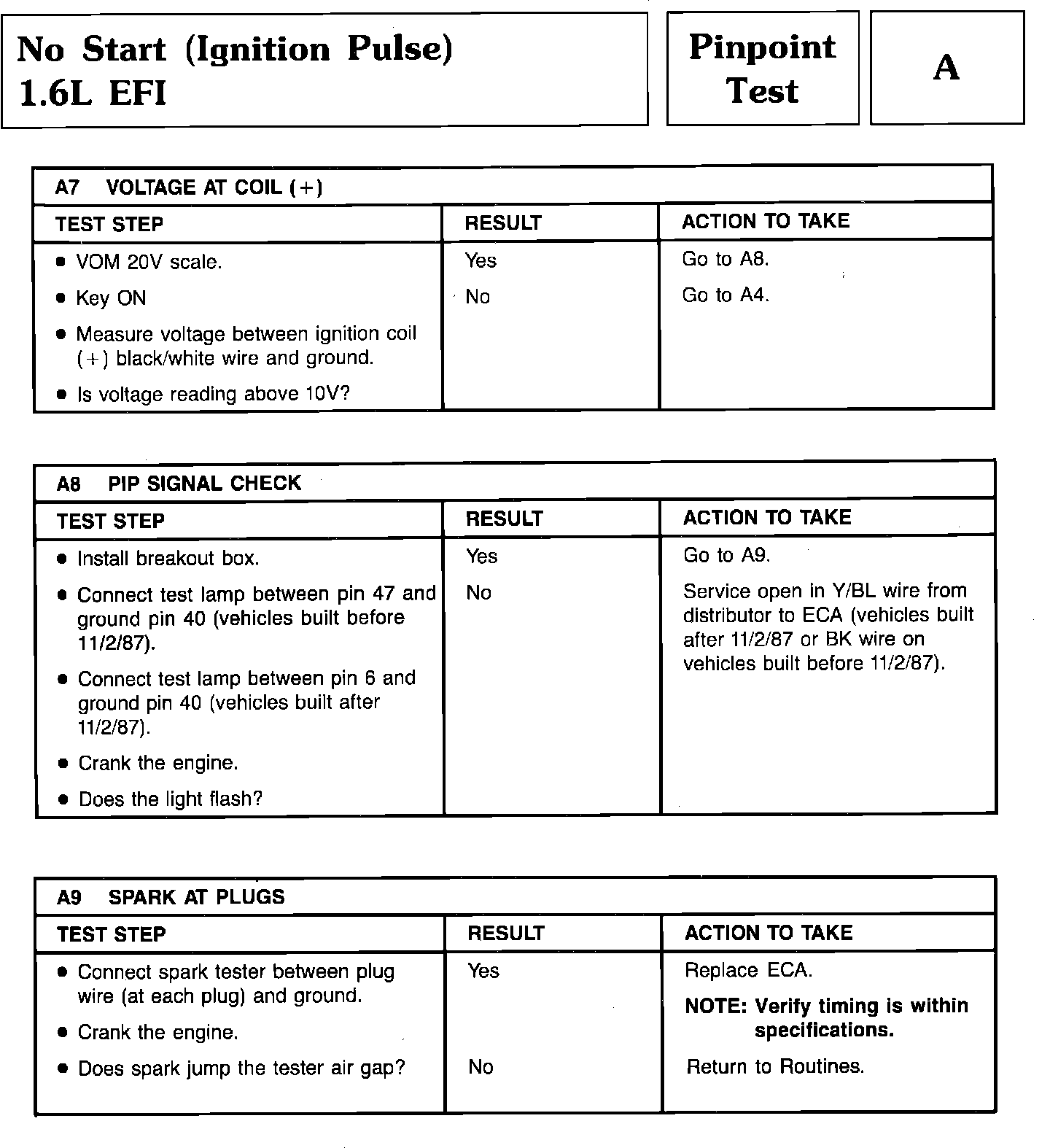

Pinpoint Test A7 Thru A9 - No Start (Ignition Pulse):
