Electronic Fuel Control System - Manual Revision

87ford2

^ ELECTRONIC FUEL CONTROL SYSTEM (EFCS) - Article No.
SELF-TEST - 1.6L - SHOP MANUAL REVISED 87-12-14
DIAGNOSTIC PROCEDURE


LINCOLN-MERCURY: 1988 TRACER


ISSUE: The Electronic Fuel Control System (EFCS) self-test procedure for the 1988 Tracer 1.6L is not listed in the 1988 Mercury Tracer Shop Manual Index. In addition, the procedure for the self-test has been changed to make service easier.

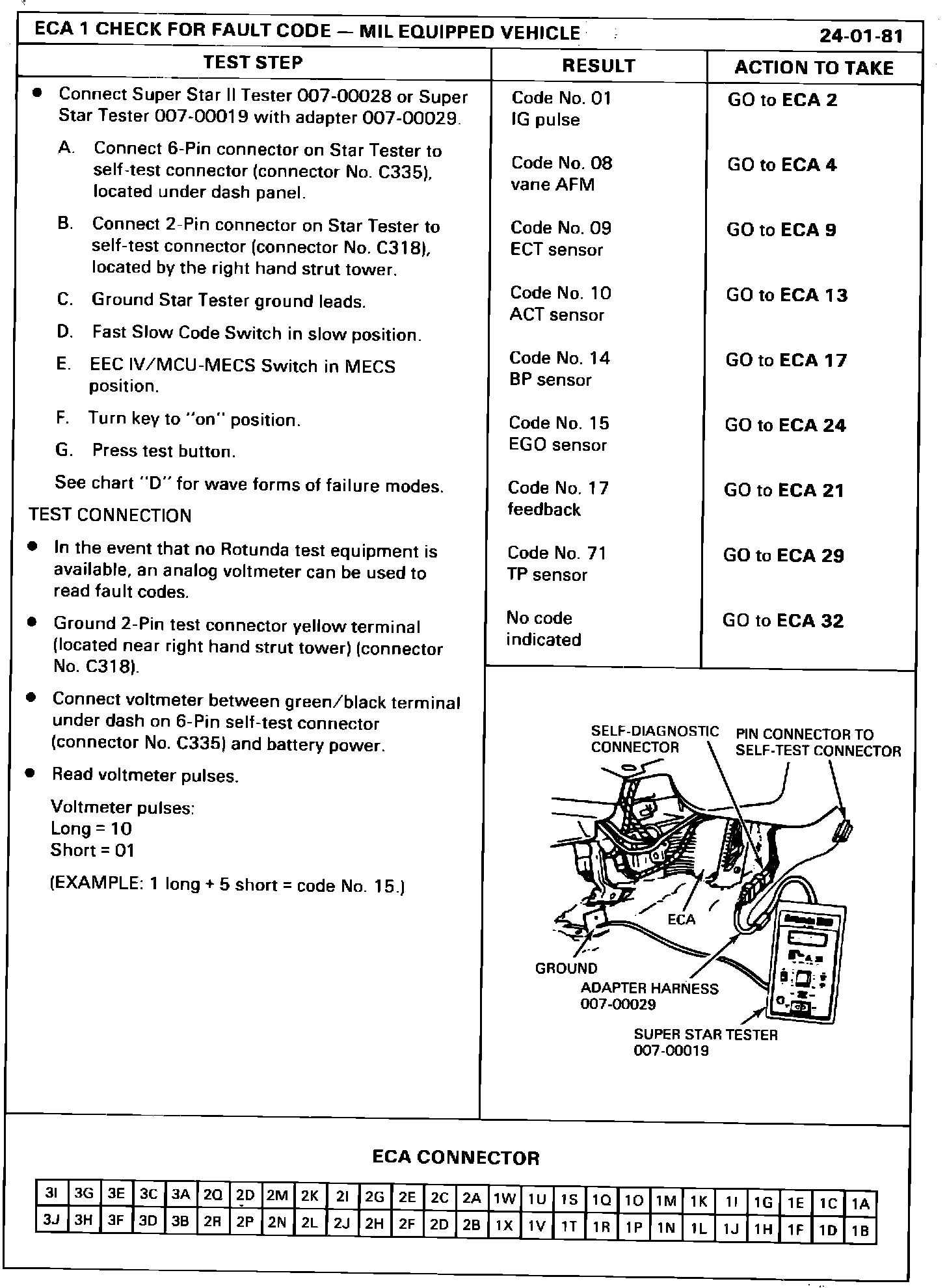

ECA 1 CHECK FOR FAULT CODE - MIL EQUIPPED VEHICLE:

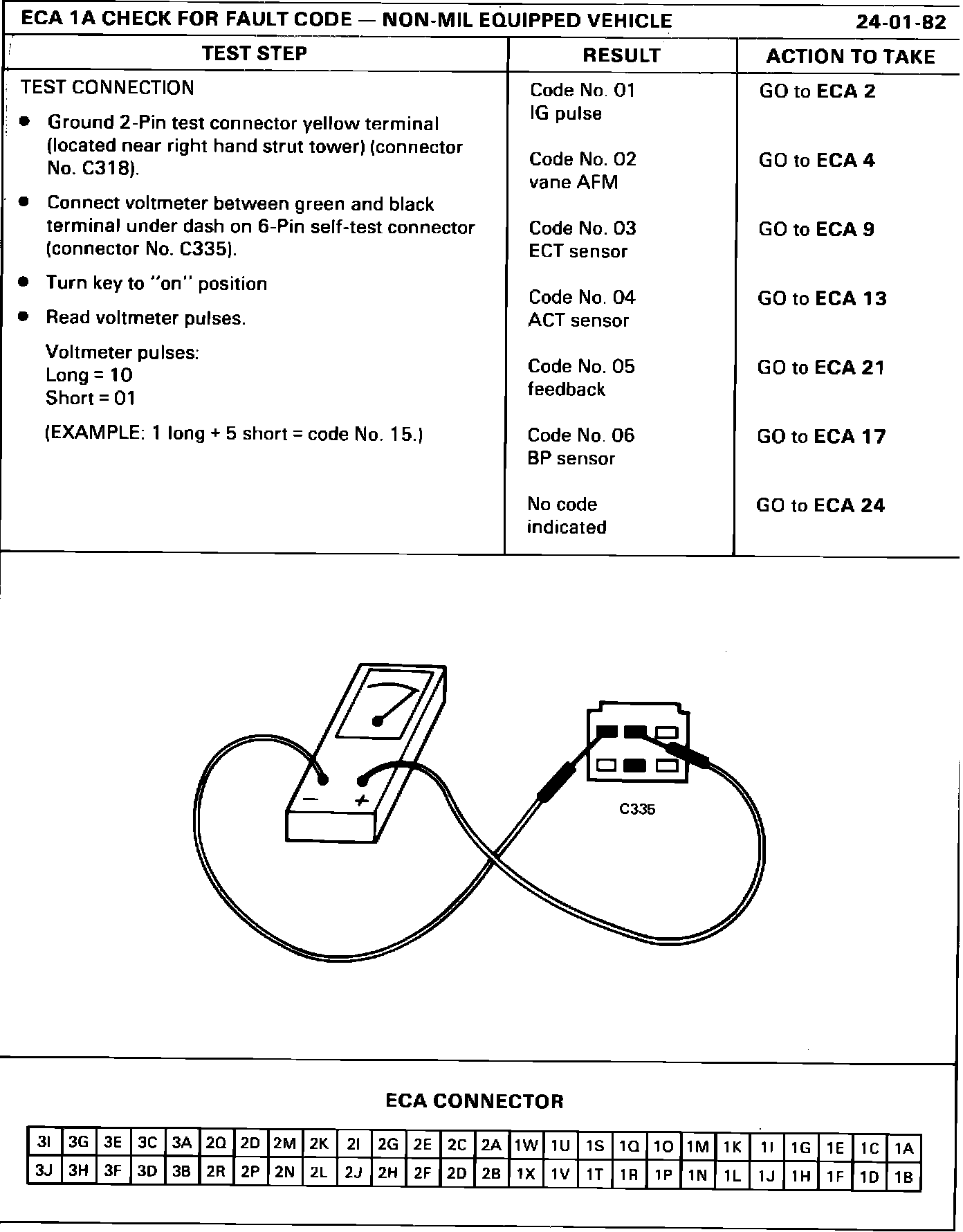

ECA 1A CHECK FOR FAULT CODE - NON-MIL EQUIPPED VEHICLE:

ACTION: Pages 24-01-81 and 24-01-82 of the 1988 Mercury Tracer Shop Manual should be replaced by pages 30 and 31 of this TSB.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
