Alignment - Specification Revisions

87ford18

SUSPENSION FRONT/REAR - ALIGNMENT Article No.
SPECIFICATIONS - SHOP MANUAL REVISIONS 87-15-4


LINCOLN-MERCURY: 1988 TRACER

ISSUE: The wheel alignment specifications for 1988 Tracer vehicles are incorrect as published in the Tracer Shop Manual, pages 14-01-11 and 14-01-13.

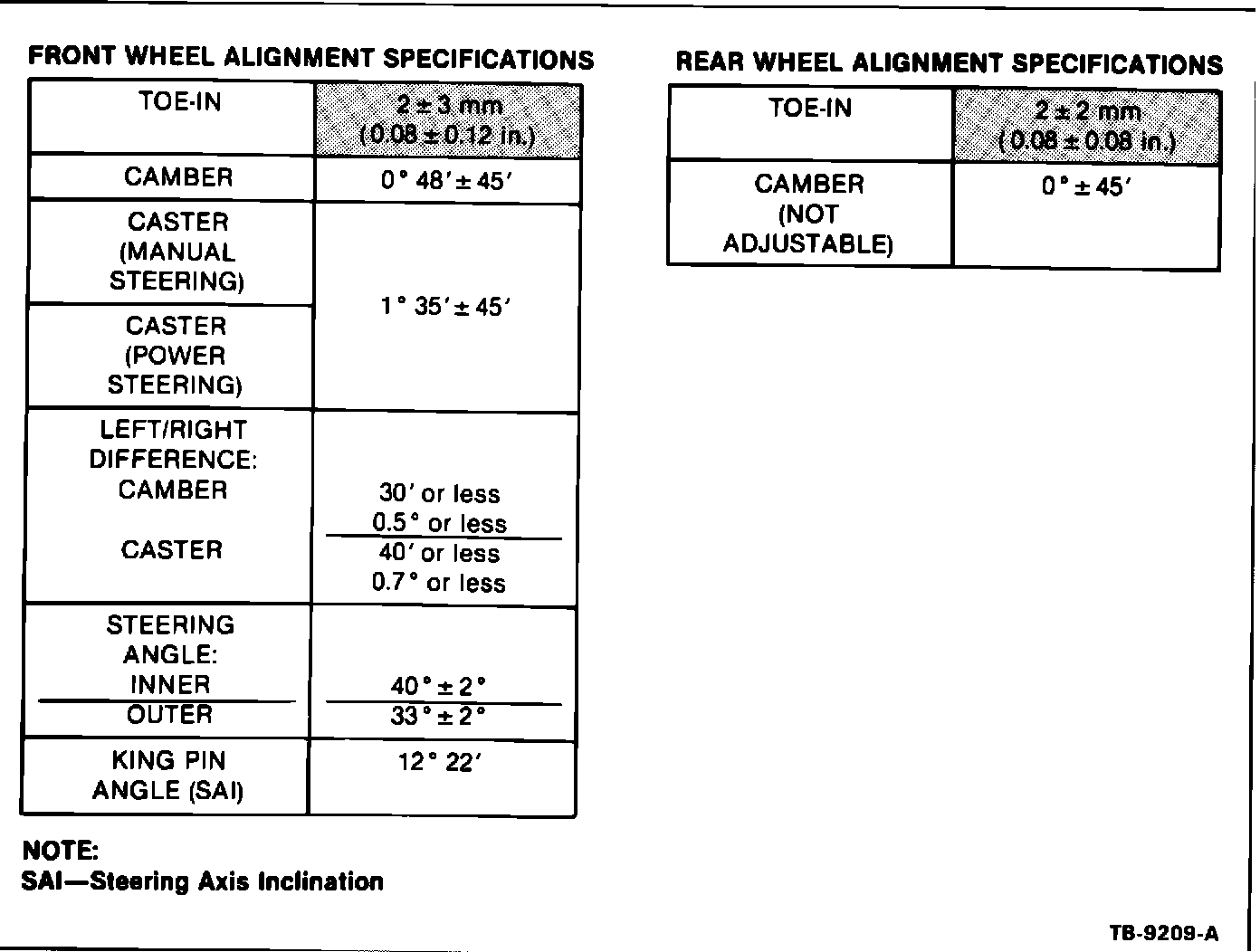

Figure 2:

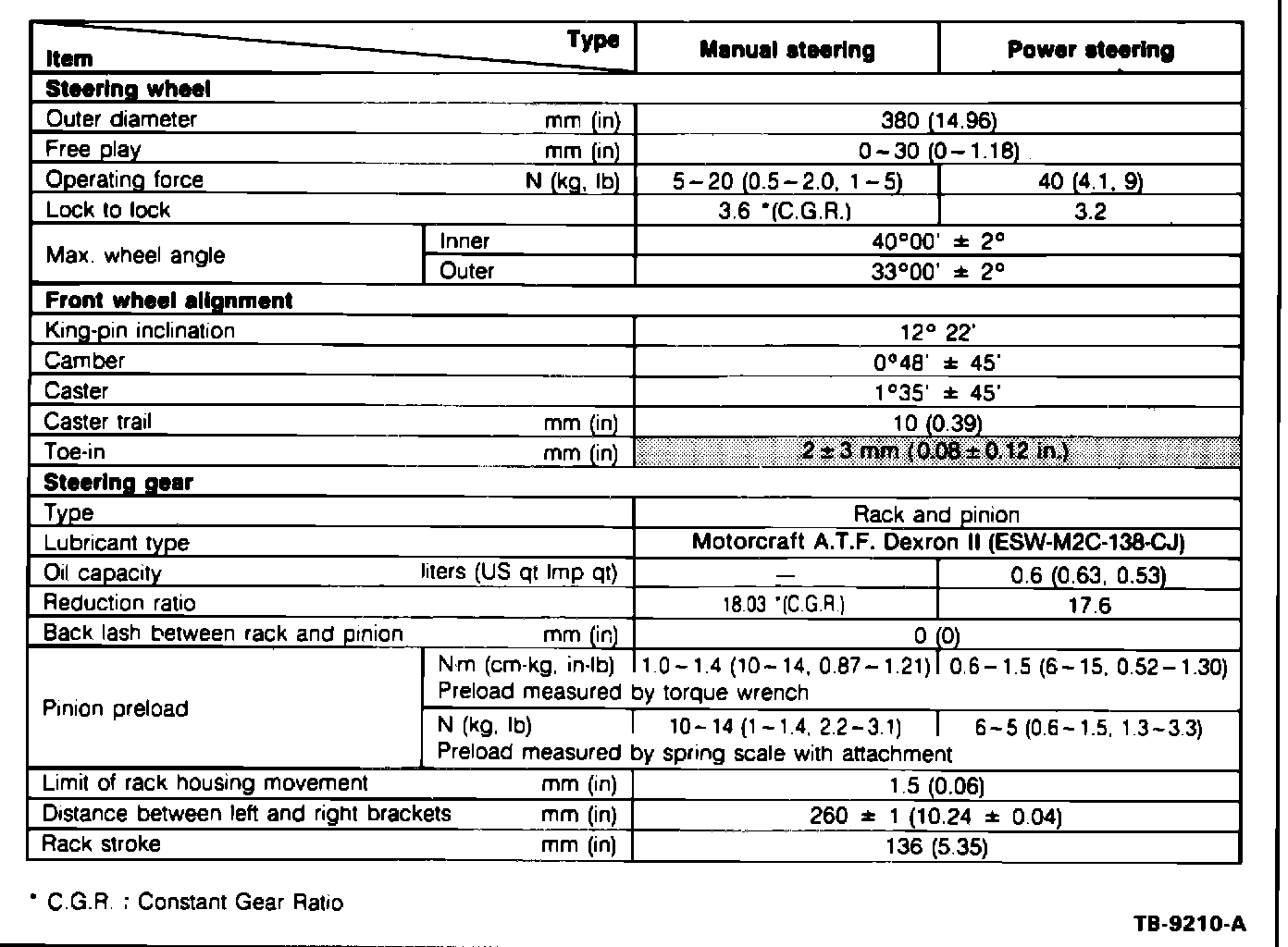

Figure 3:

ACTION: The correct specifications are shown in Figures 2 and 3 of this TSB.

NOTE: Canadian vehicles - front toe specification is correct as published, REAR toe is INCORRECT as published.

Please make the necessary changes in your Tracer Shop Manual.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
