Instrument Cluster / Carrier: Service and Repair

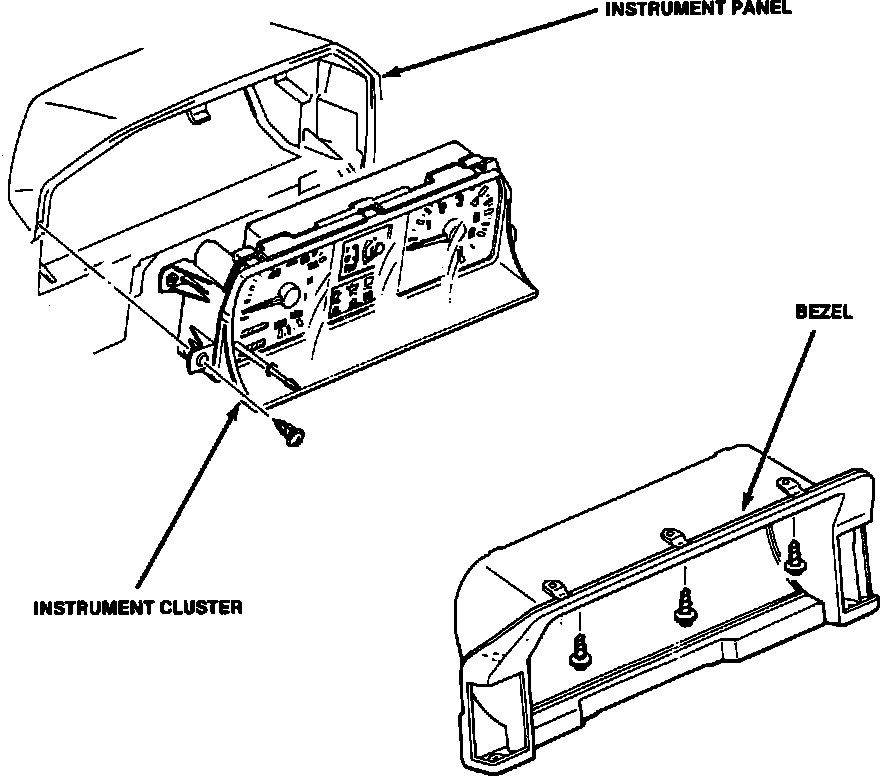

Fig. 4 Instrument Cluster:

1. Disconnect battery ground cable.
2. Remove steering wheel, refer to ``Steering Wheel and Horn Sounder, Replace.''
3. Remove attaching screws, then remove instrument cluster bezel, Fig. 7.
4. Remove instrument cluster attaching bolts, then pull cluster slightly outward and disconnect speedometer cable and electrical connectors.
5. Remove instrument cluster from instrument panel.
6. Reverse procedure to install.
