Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Built Before November 3, 1987 >> Fuel Injected

Fuel Injected

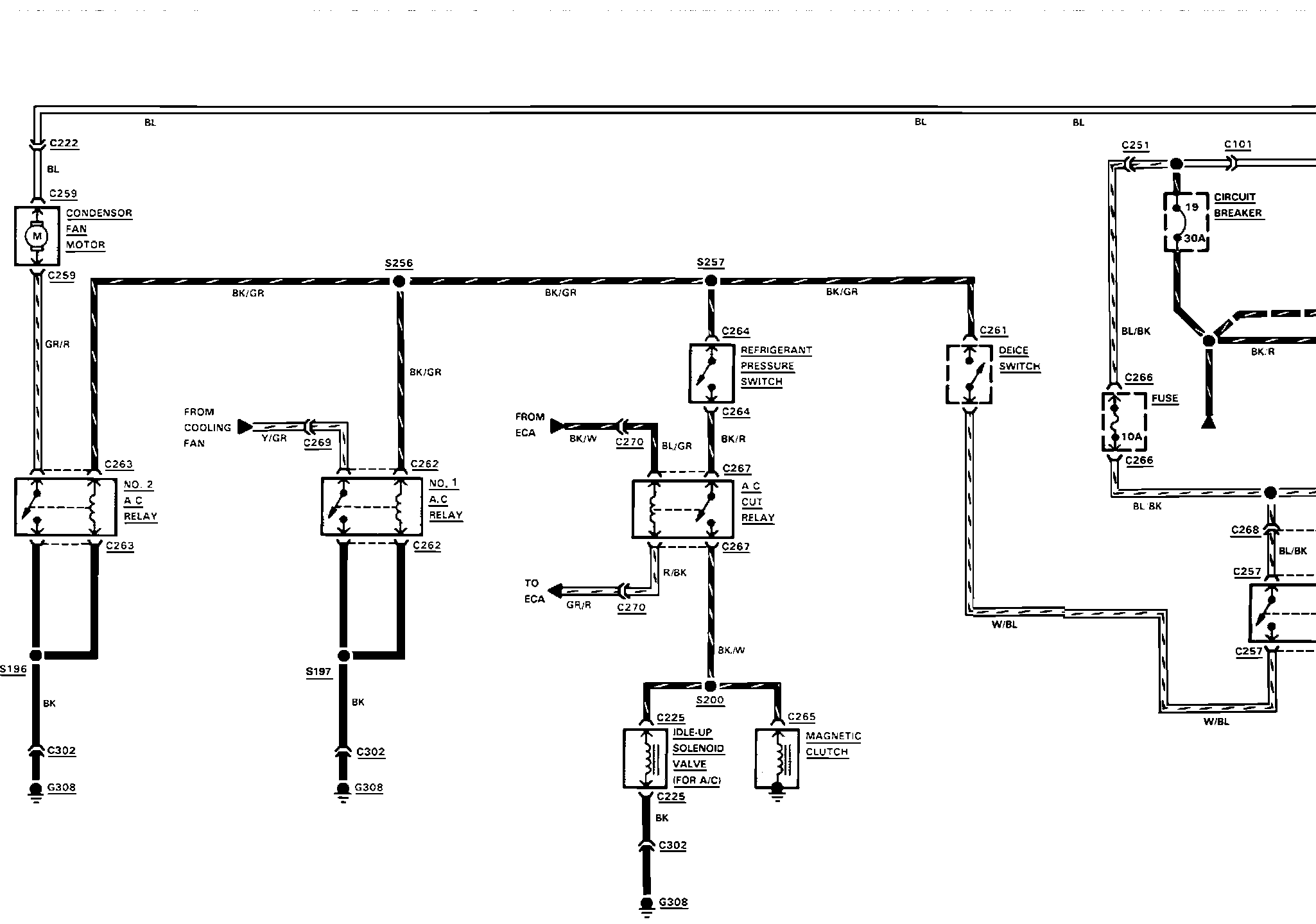

-ܶQAir Conditioning & Heater (Fuel Injection):
