Fuel System - Fuel Pressure Test Adapter Tool

87ford5

FUEL SYSTEM - 1.6L EFI - FUEL PRESSURE Article No.
TEST ADAPTER - NEW SERVICE TOOL 87-8-10


LINCOLN-MERCURY: 1988 TRACER


ISSUE: A new fuel pressure test adapter tool (D87C-9974-A) will be available after May 15, 1987 for servicing fuel system concerns on 1988 Tracers with EFI.

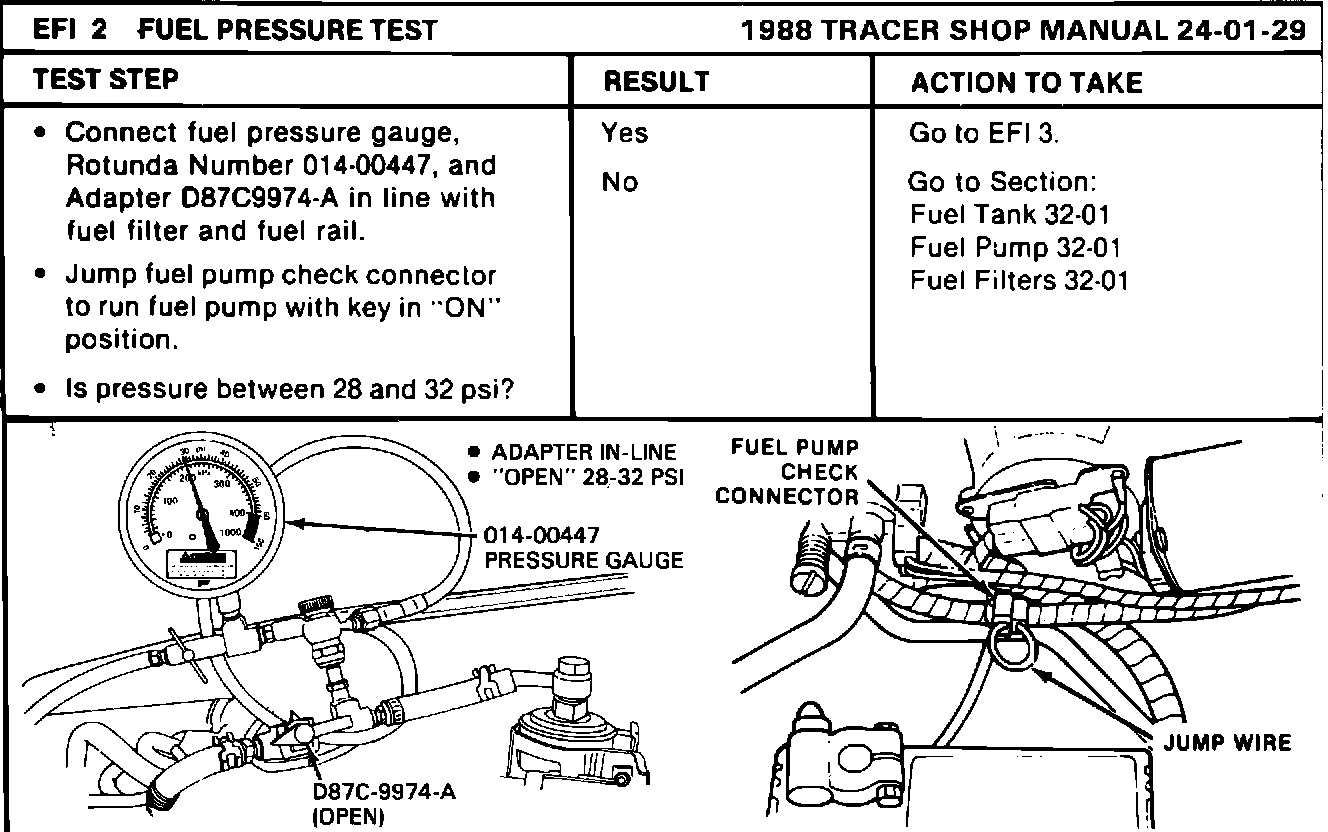

EFI 2 FUEL PRESSURE TEST:

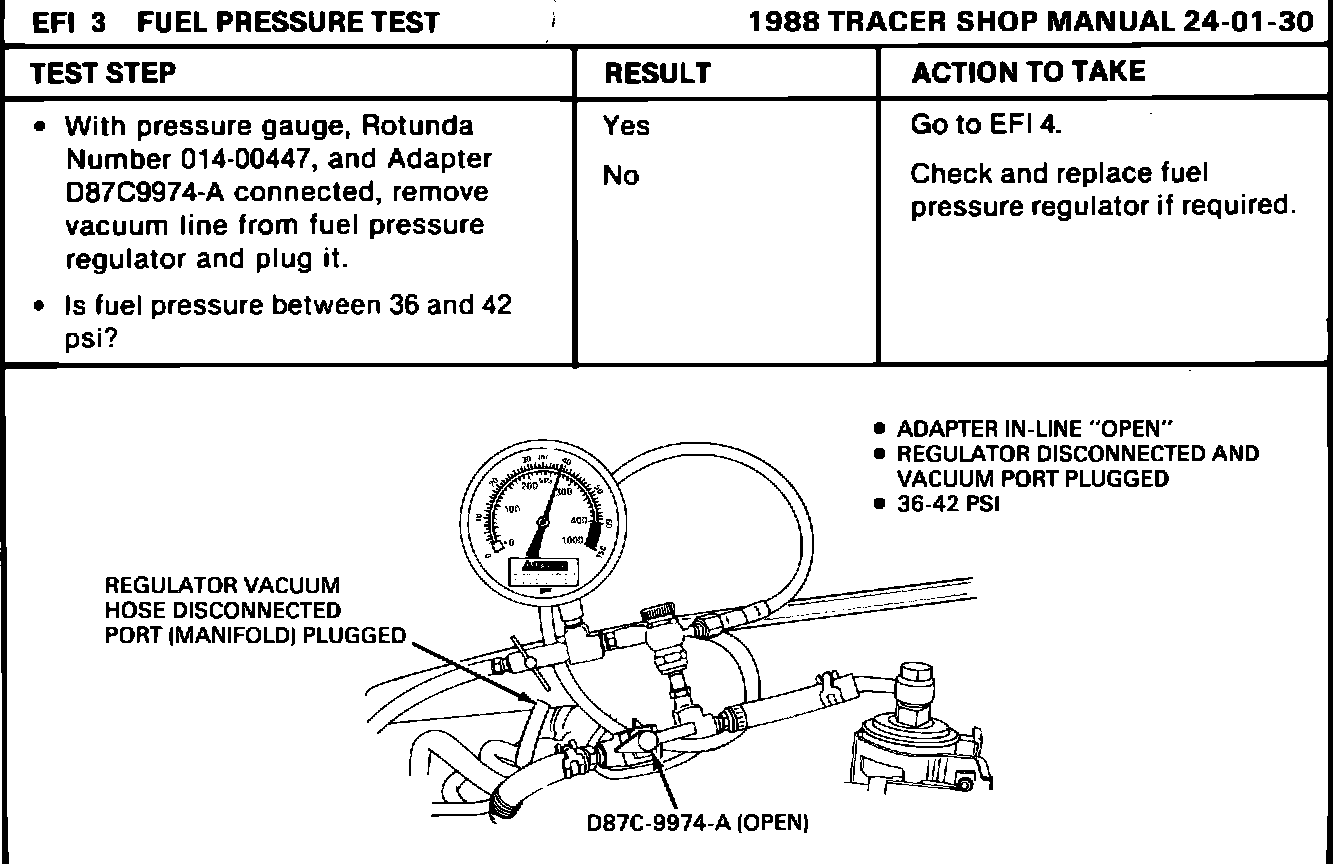

EFI 3 FUEL PRESSURE TEST:

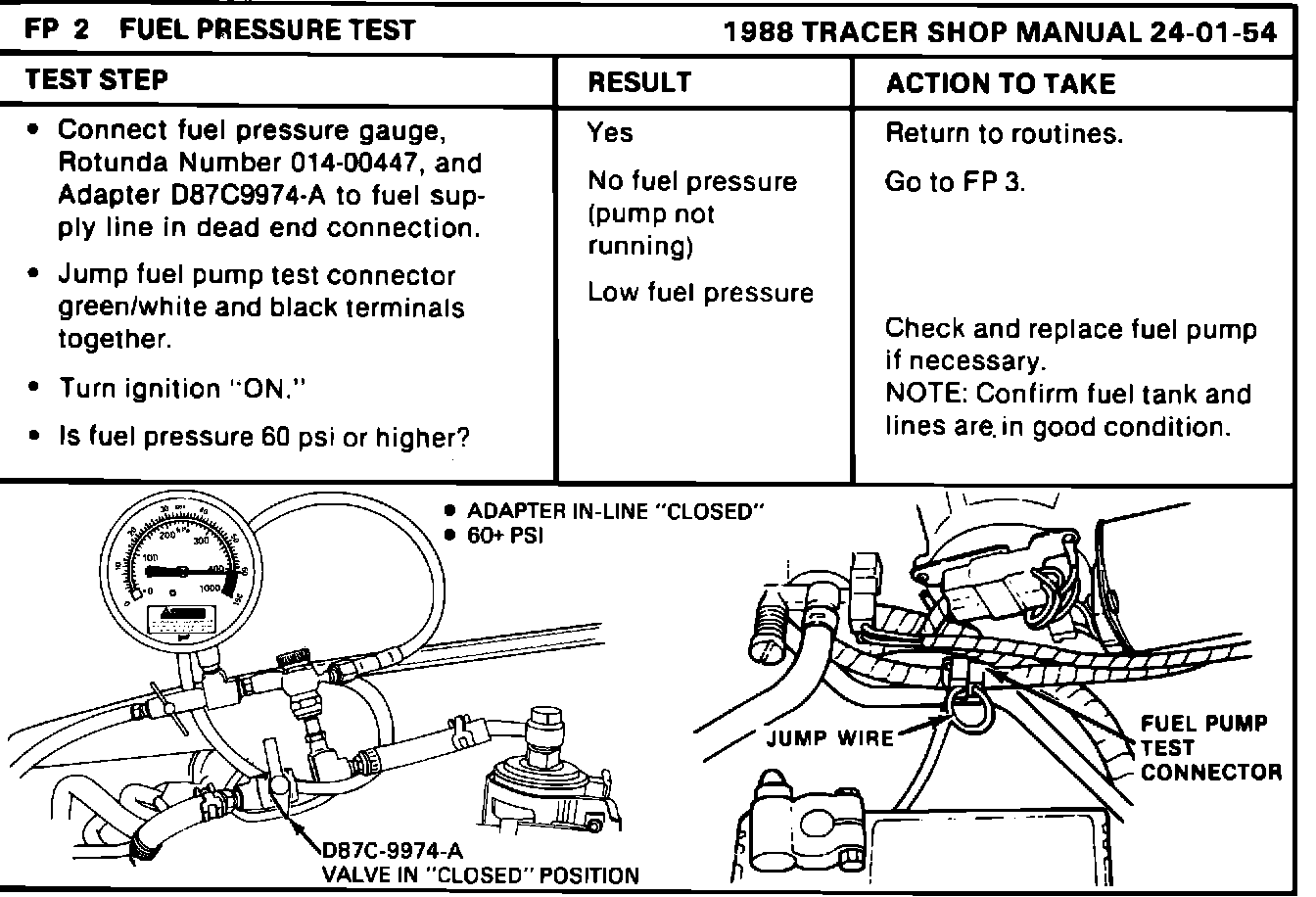

FP 2 FUEL PRESSURE TEST:

ACTION: The 1988 Tracer Shop Manual, Sections 24-01-29, 24-10-30, and 24-01-54 should be changed to show this new tool. Refer to pages 2 through 4 for the new service information.


NOTE: The fuel pressure test adapter tool (D87C-9974-A) may be ordered direct through Owatonna Tool Company.

OTC Division Sealed Power Corporation
2013 4th Street, N.W.
Owatonna, MN 55060
1-800-533-5338
(Ask for Ford Order Desk)

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
