Valve Guide: Service and Repair

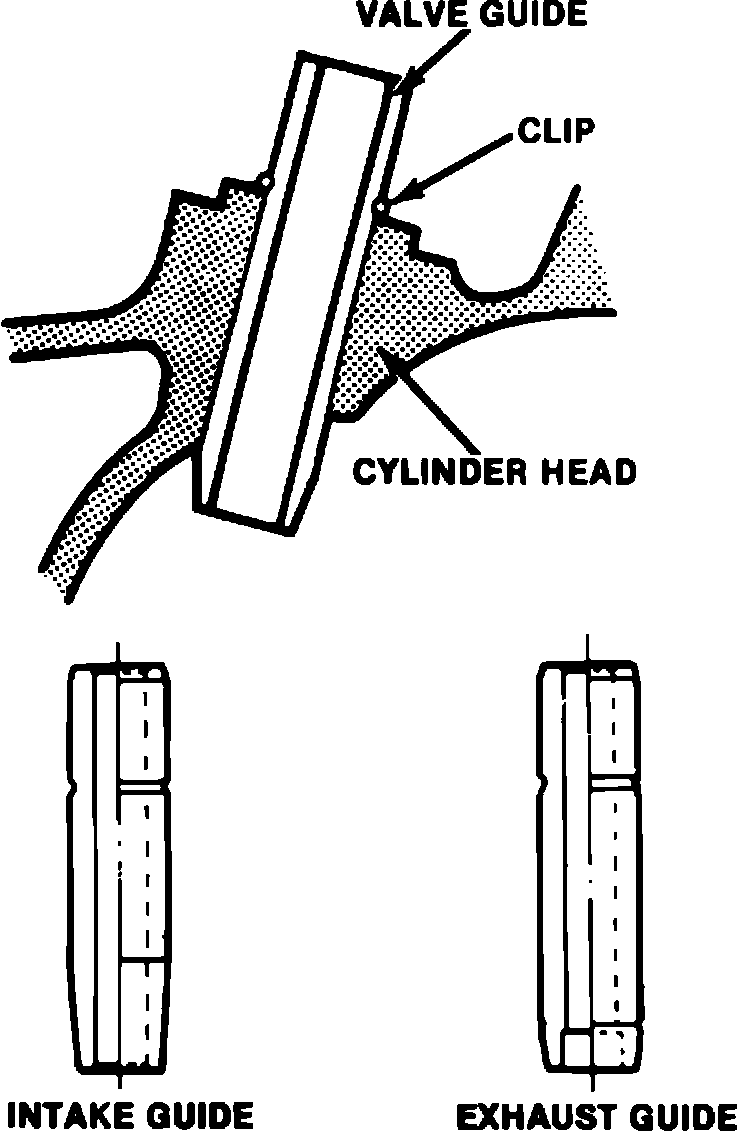

Fig. 7 Valve guide identification:

Valve guides can be replaced using tool No. T87C-6510-A. When removing valve guide, drive out toward camshaft side of cylinder head. When installing valve guide, drive in until clip just contacts cylinder head, Fig. 7.
