Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With Electronic Fuel Injection (EFI) >> Vehicles Built After November 2. 1987

Vehicles Built After November 2. 1987

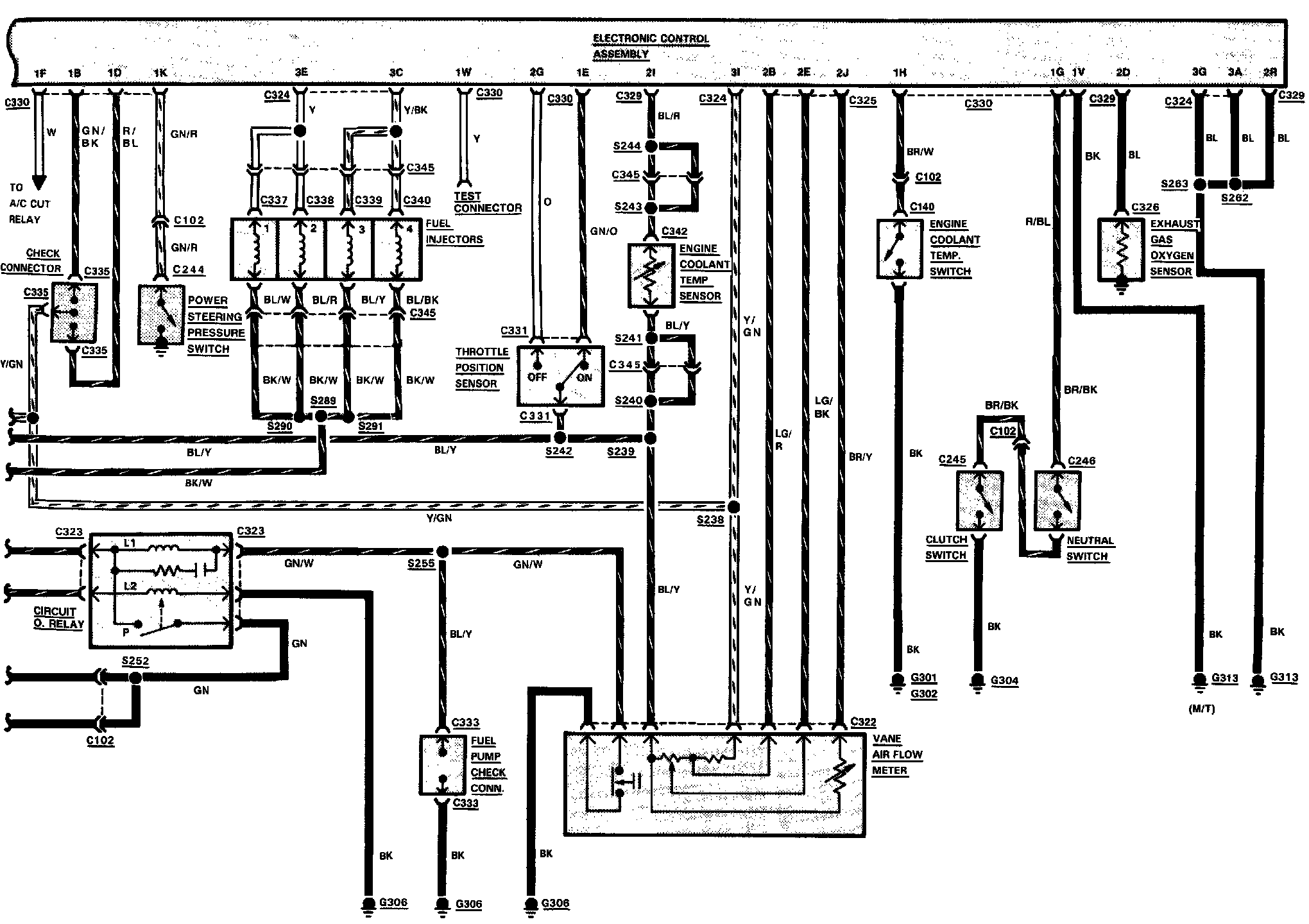

Diagram 26:

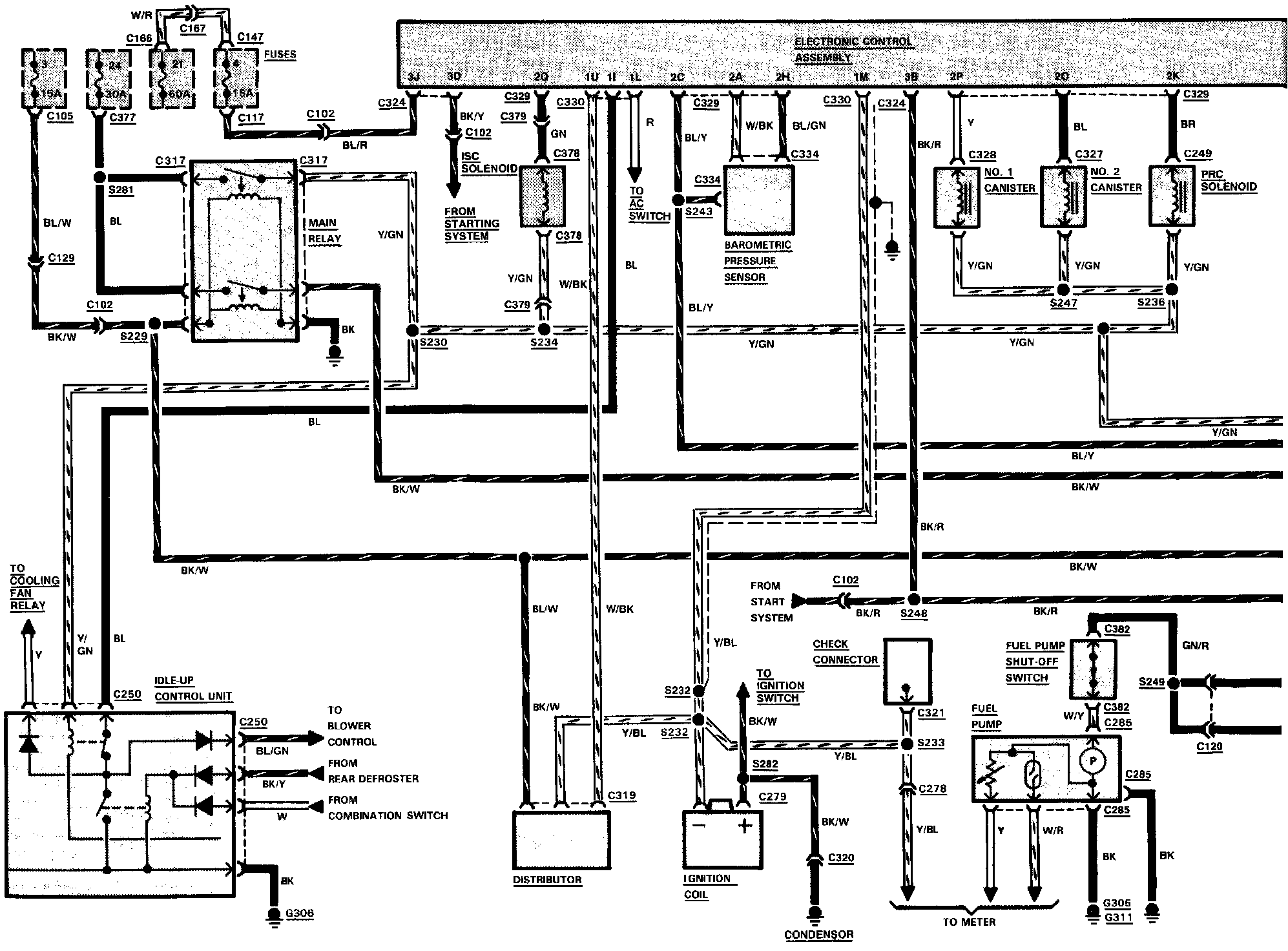

Diagram 27:
