Home >> Mercury >> 1988 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps

Exterior Lamps

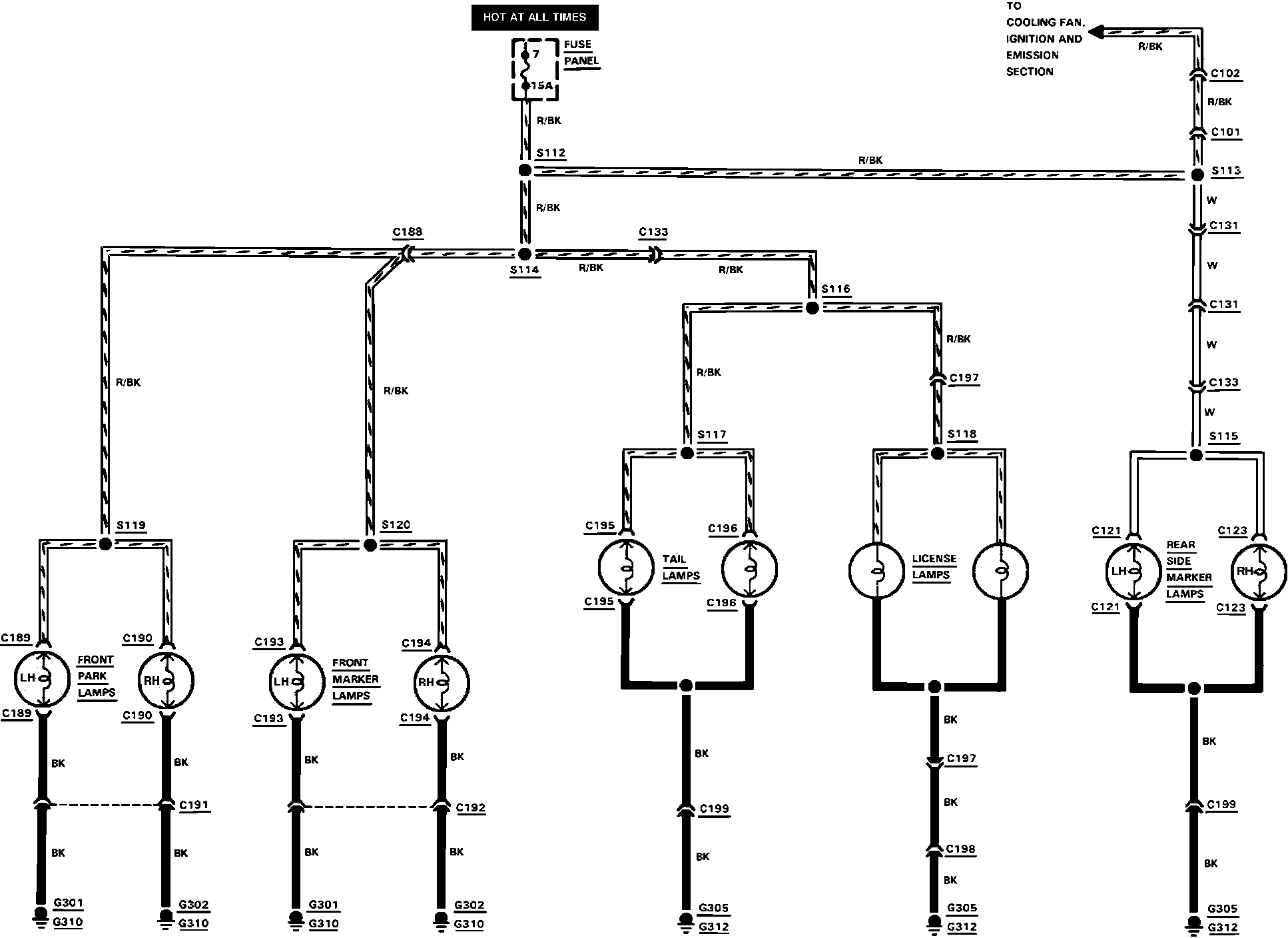

License, Marker, Parking & Tail Lamp:
