Parking Brake Control: Adjustments

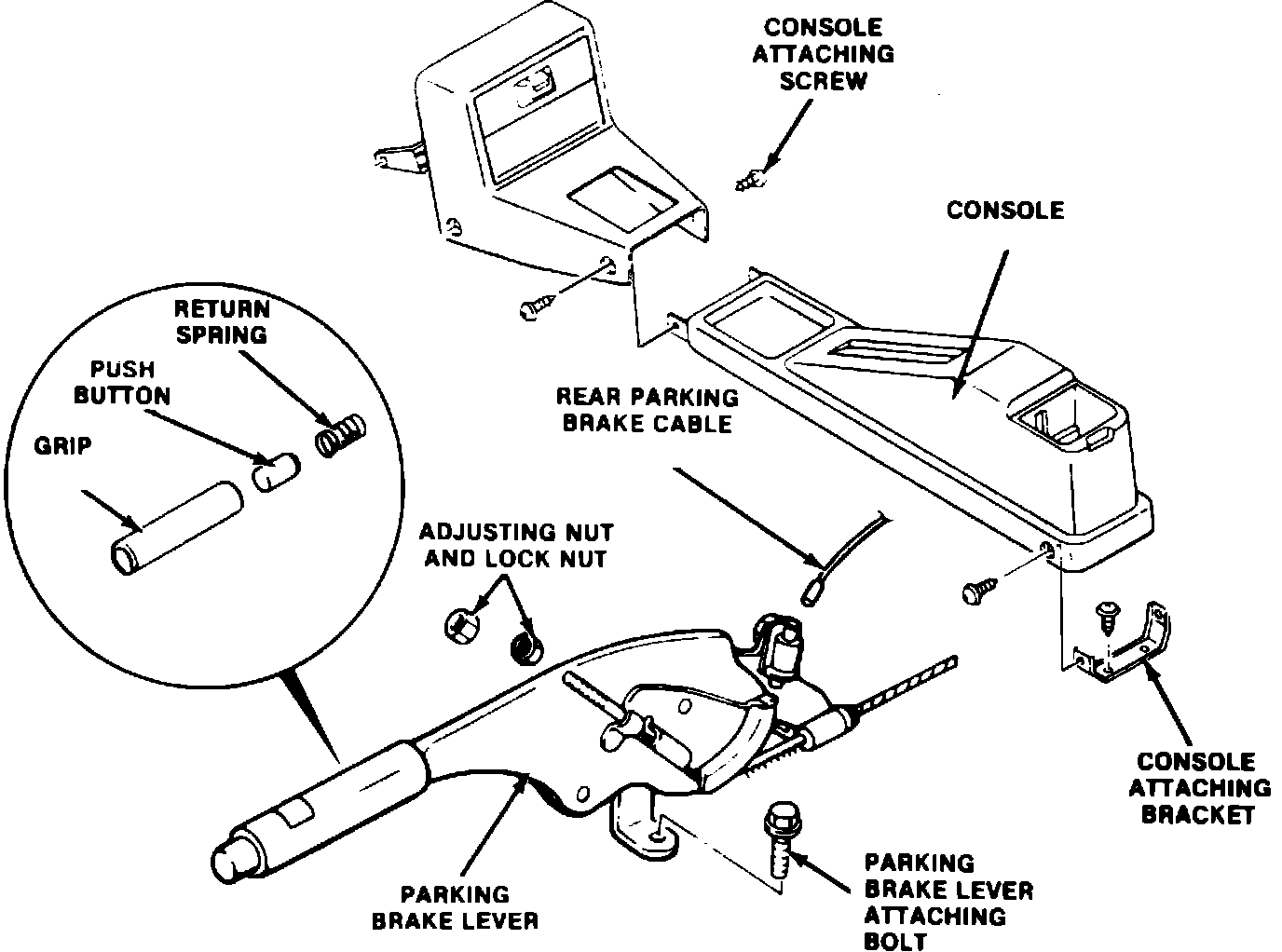

Fig. 1 Parking brake adjustment:

Parking brake adjustment is satisfactory, when a parking brake is fully set with a lever travel of 7 to 11 notches. If necessary, adjust parking brake as follows:
1. Remove center console attaching screw, then remove center console, Fig. 1.
2. Tighten parking brake adjusting nut, located on left hand side of parking brake lever, until 10 notches of lever travel is required to fully set parking brake.
3. After completing adjustment, install center console.
