Fault Indication - Airbag Lamp Does Not Light
>>
Test Step A7, A8
Test Step A7, A8

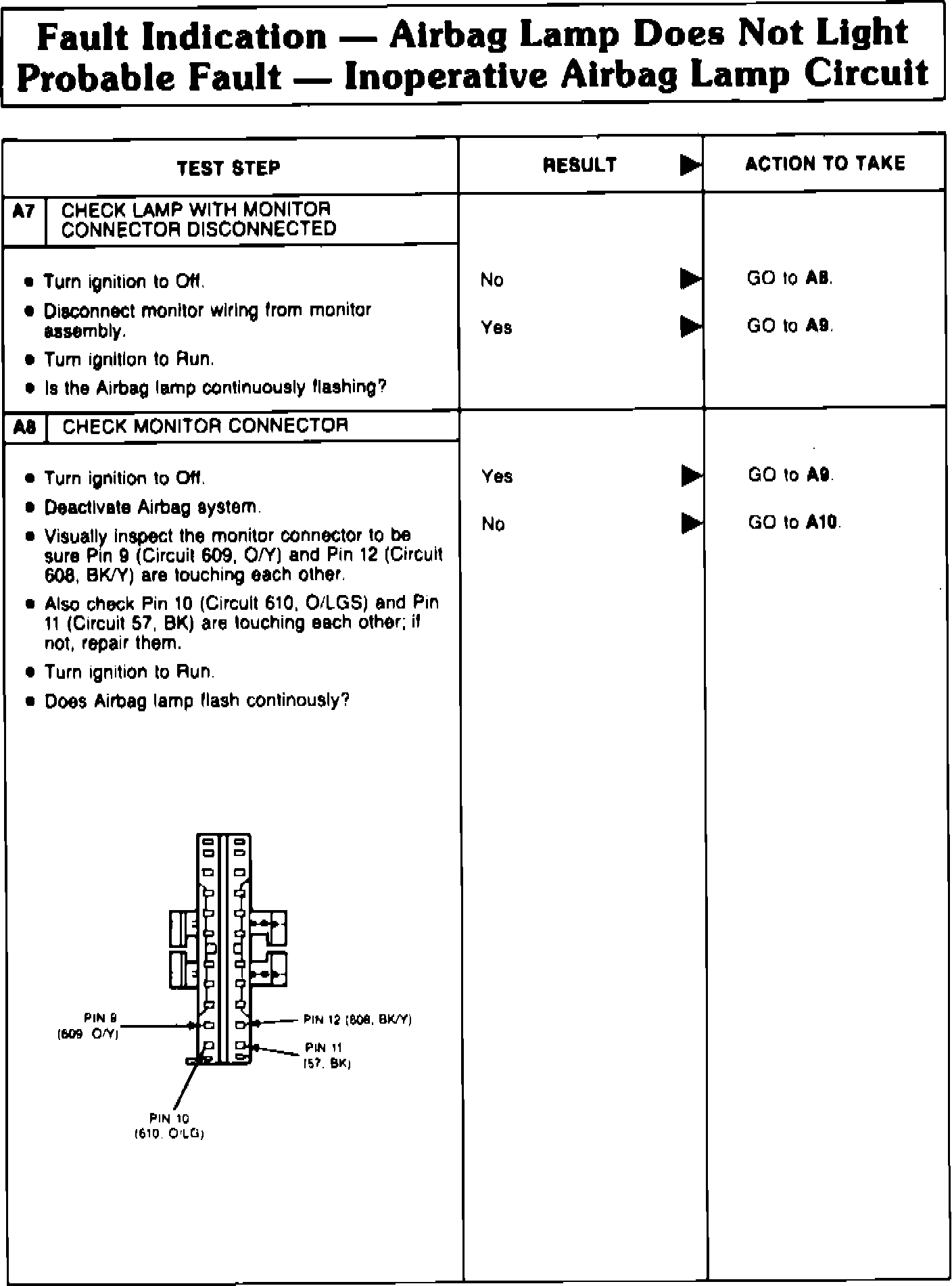

Fig. 10 Fault Indication - Airbag Lamp Does Not Light. Probable Fault - Inoperative Airbag Lamp Circuit.(Part 3 of 37):
