Airbag Lamp Flashes Eight Times
>>
Test Step 8.4
Test Step 8.4

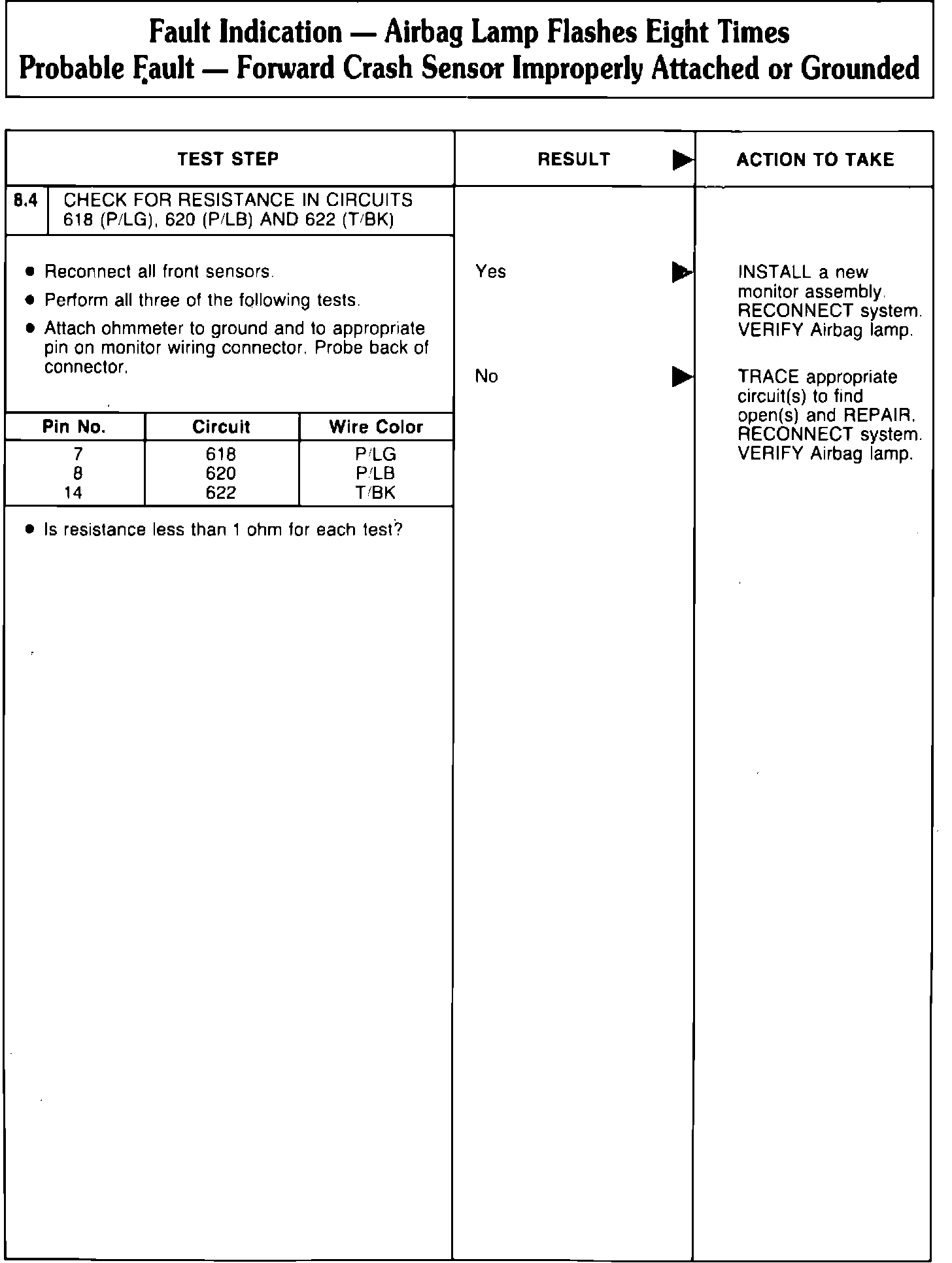

Fig. 10 Fault Indication - Airbag Lamp Flashes Eight Times. Probable Fault - Forward Crash Sensor Improperly Attached or Grounded.(Part 33 of 37):
