Airbag Lamp Stays On
>>
Test Step B5
Test Step B5

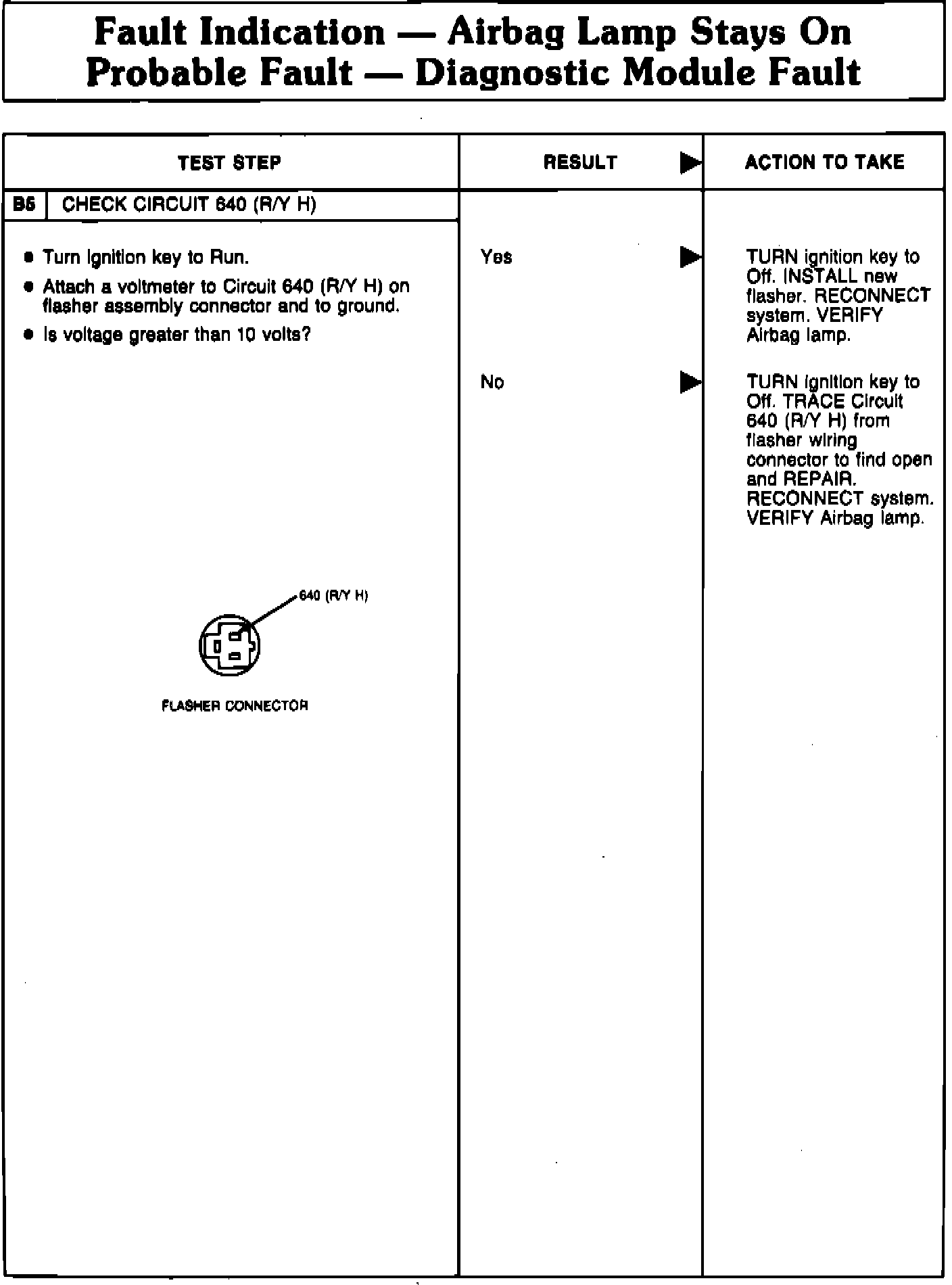

Fig. 10 Fault Indication - Airbag Lamp Stays On. Probable Fault - Diagnostic Module Fault.(Part 9 of 37):
