Airbag Lamp Flashes Four Times
>>
Test Step 4.23, 4,24, 4,25
Test Step 4.23, 4,24, 4,25

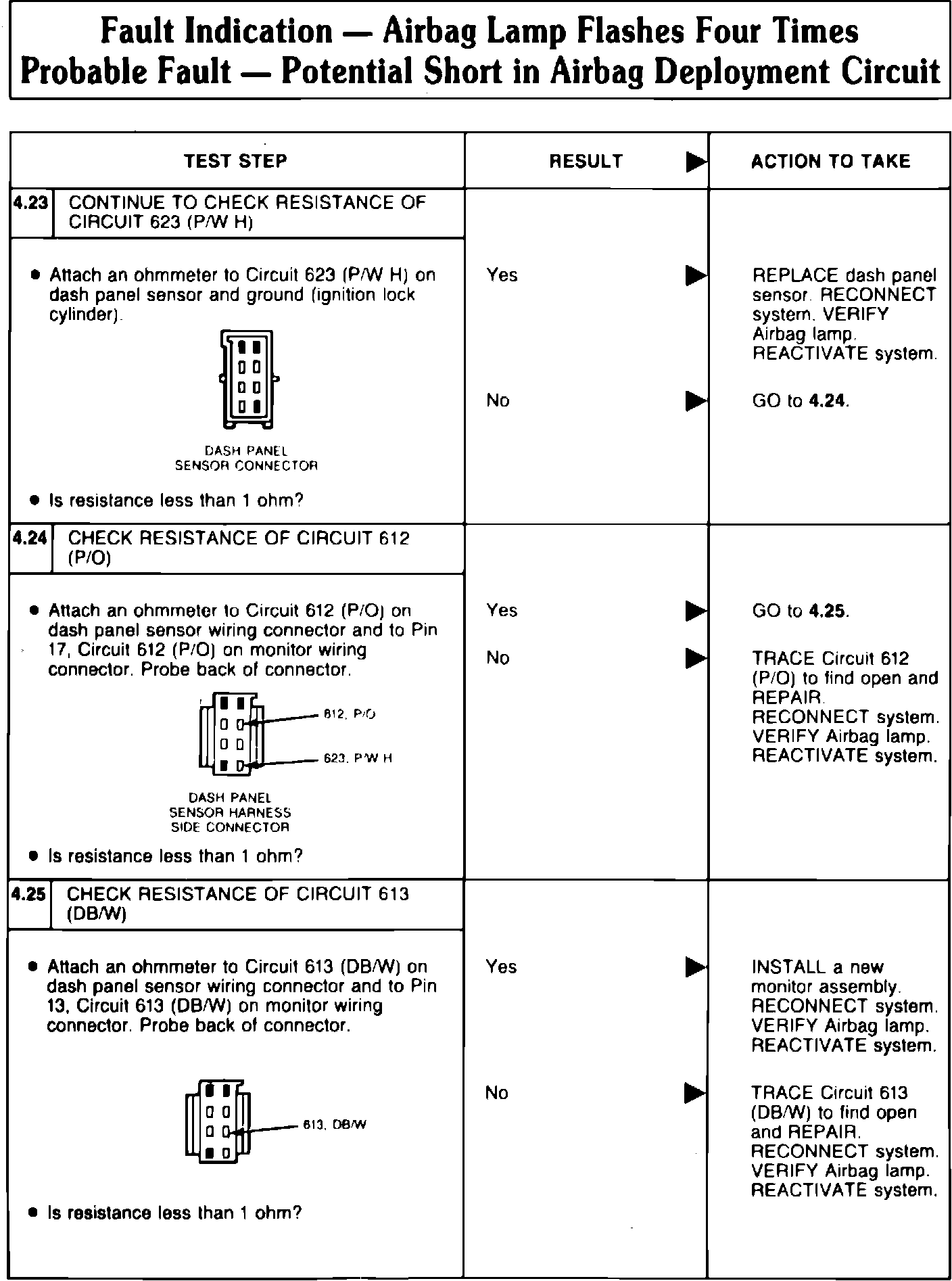

Fig. 10 Fault Indication - Airbag Lamp Flashes Four Times. Probable Fault - Potential Short in Airbag Deployment Circuit.(Part 25 of 37):
