A/C Control Connector - Manual Revision

90ford19 SHOP MANUAL - 1988 - A/C-HEATER CONTROL CONNECTOR ILLUSTRATION REVISED
Article No. 90-12B-4
FORD: 1988 TEMPO

LINCOLN-MERCURY: 1988 TOPAZ






ISSUE: The A/C - Heater Control connector, shown on page 36-47-8 of the 1988 Tempo/Topaz Shop Manual, Volume 1 of 2, is incorrectly illustrated.

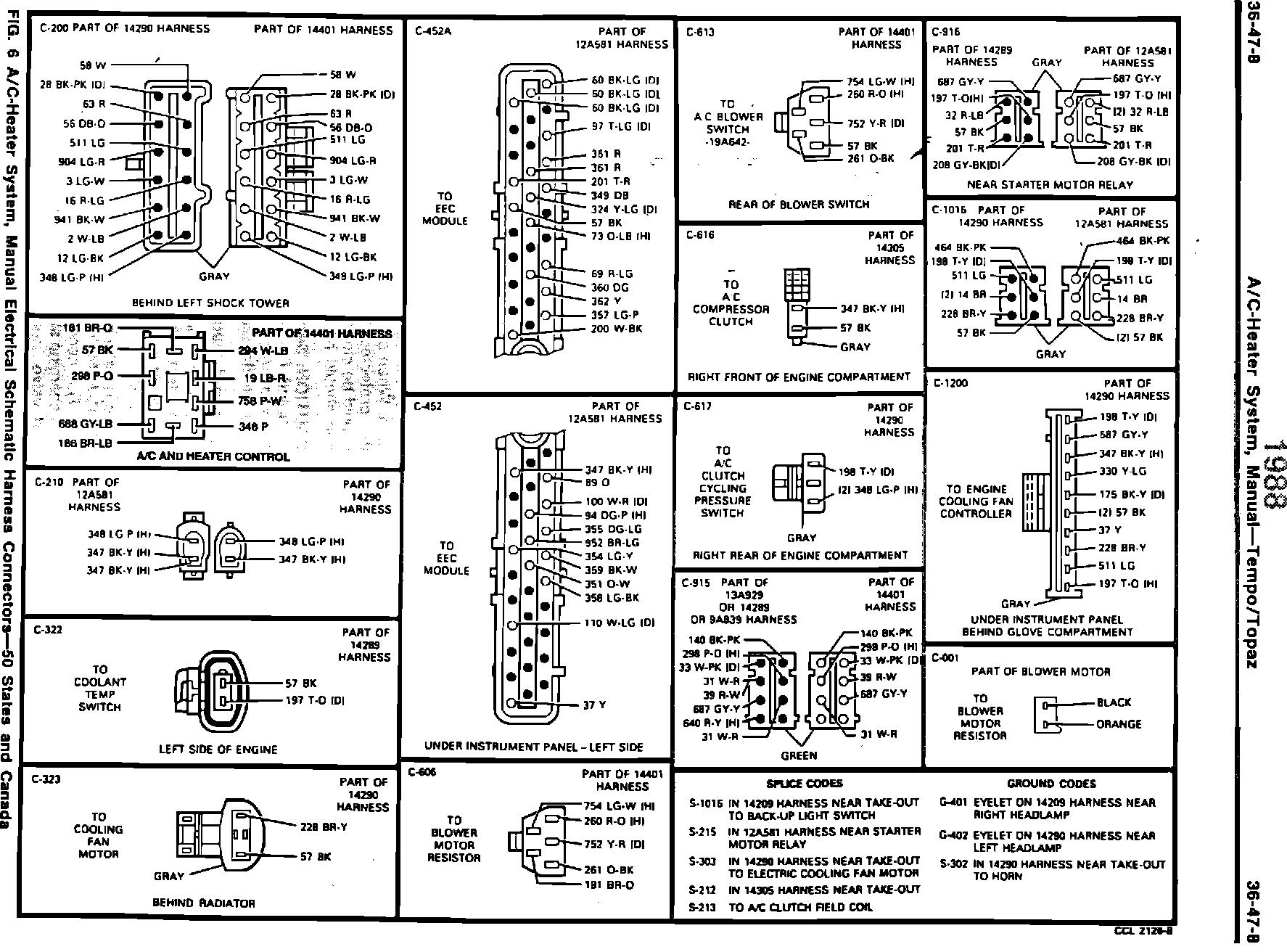

ACTION: Refer to the pages following this TSB article for the revised illustration.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
