Sport Cluster With Passive Restraint

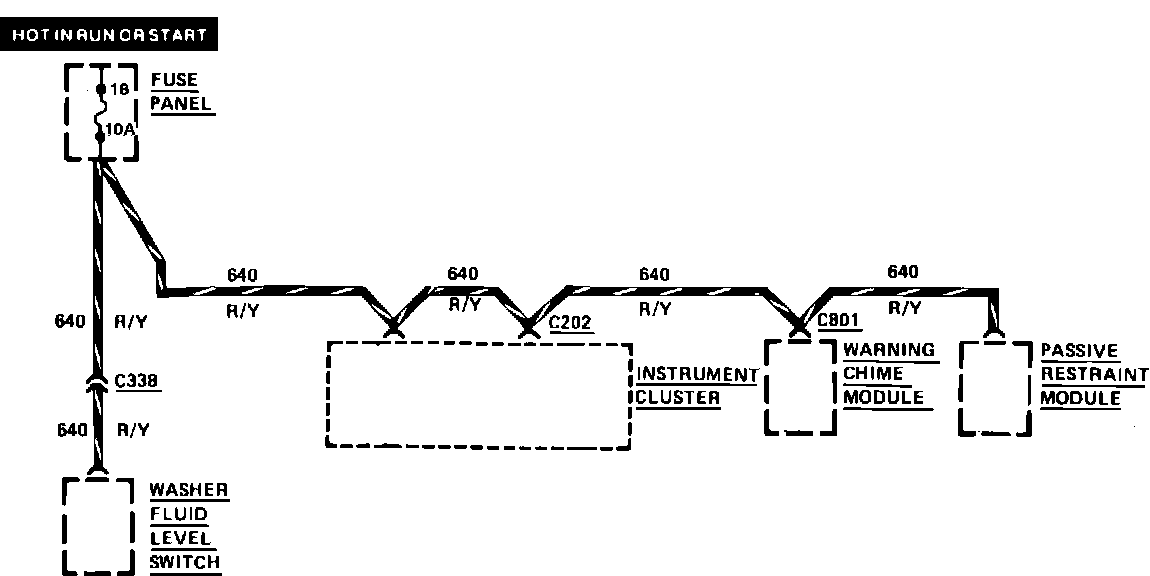

Charging System & Power Distribution. Sport Cluster With Passive Restraint:
