With Interval Wipers

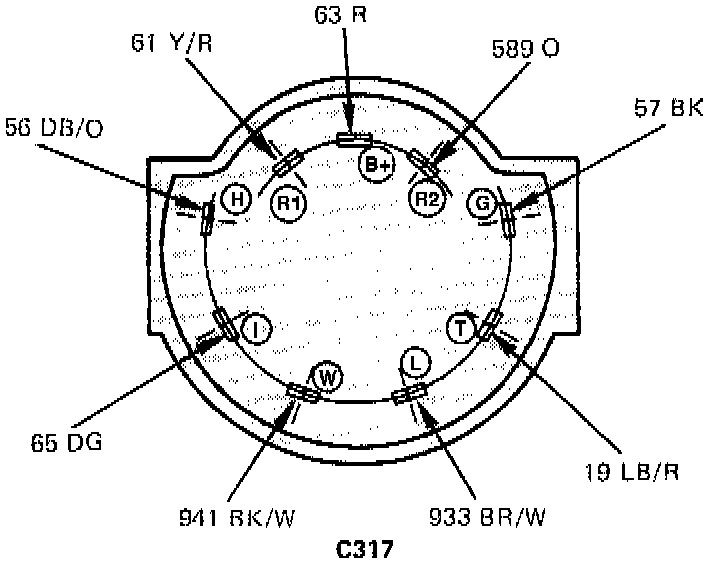

Wiper Switch:

Terminal Locations

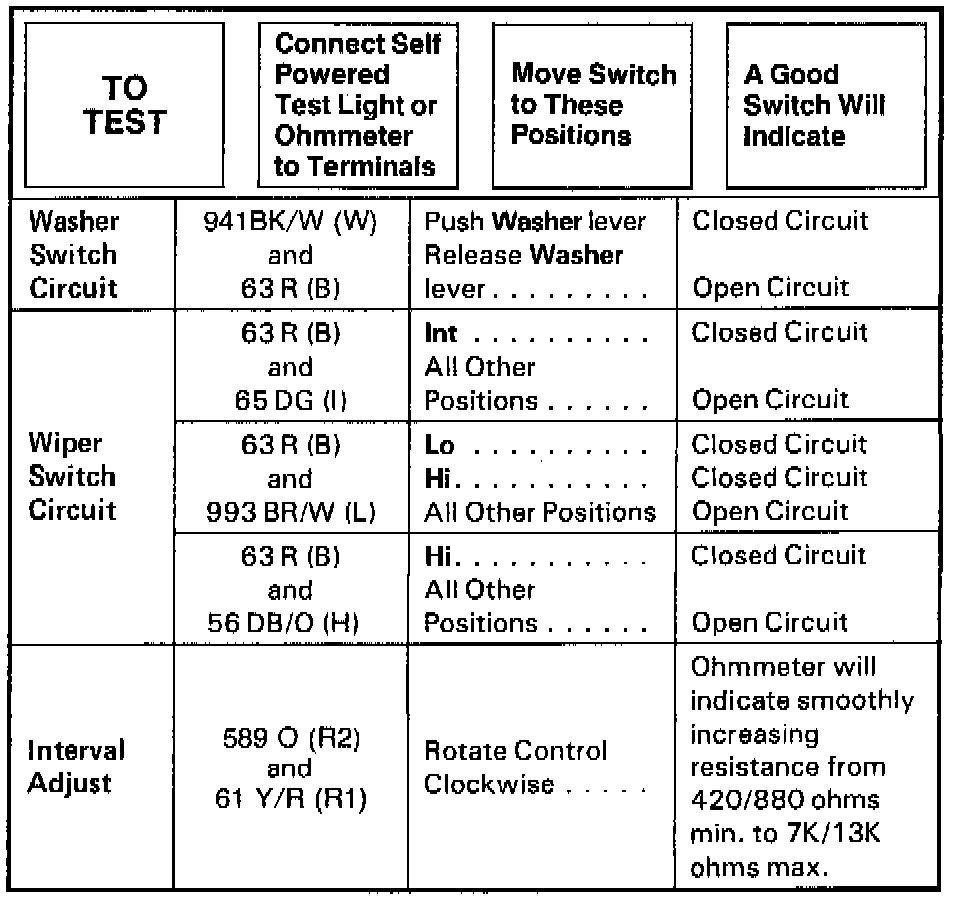

Wiper/Washer Switch Tests:

Testing Procedure

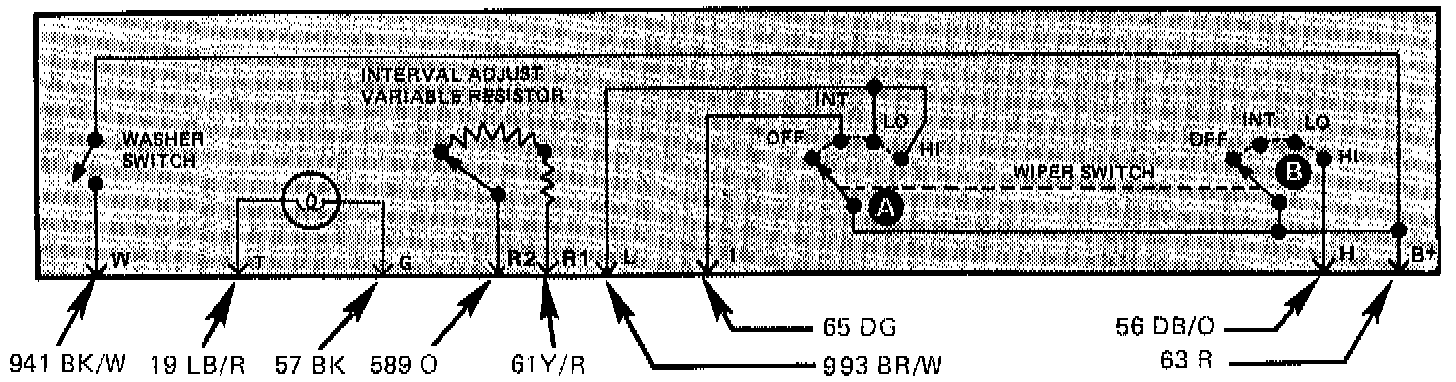

Wiper/Washer Switch:

Schematic
