Airbag Lamp Flashes Three Times
>>
Test Step 3.3, 3.4, 3.5
Test Step 3.3, 3.4, 3.5

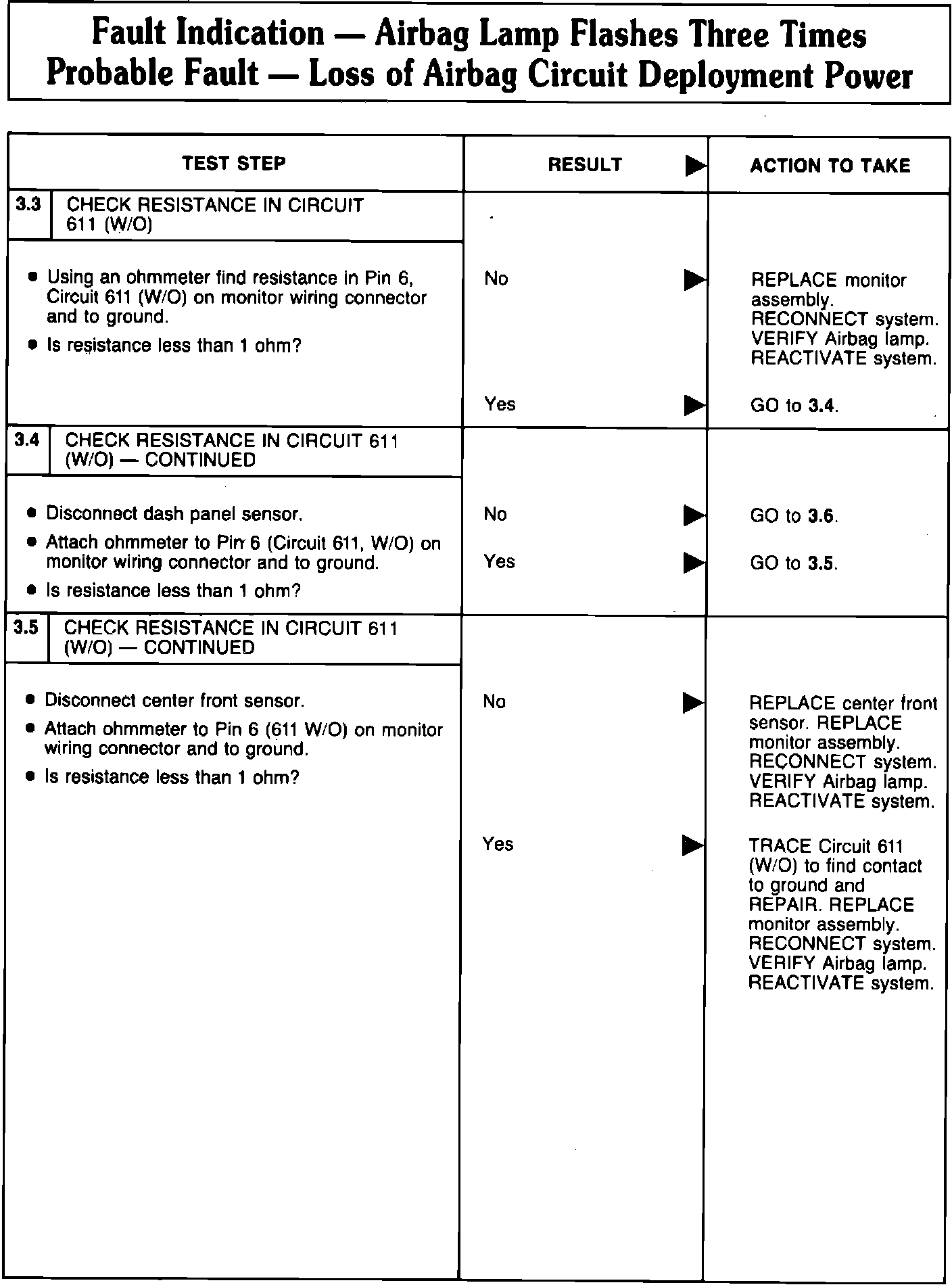

Fig. 10 Fault Indication - Airbag Lamp Flashes Three Times. Probable Fault - Loss of Airbag Circuit Deployment Power.(Part 14 of 37):
