Home >> Mercury >> 1988 >> Topaz AWD L4-140 2.3L HSO (VIN S) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> Airbag Lamp Flashes Ten Times

Airbag Lamp Flashes Ten Times

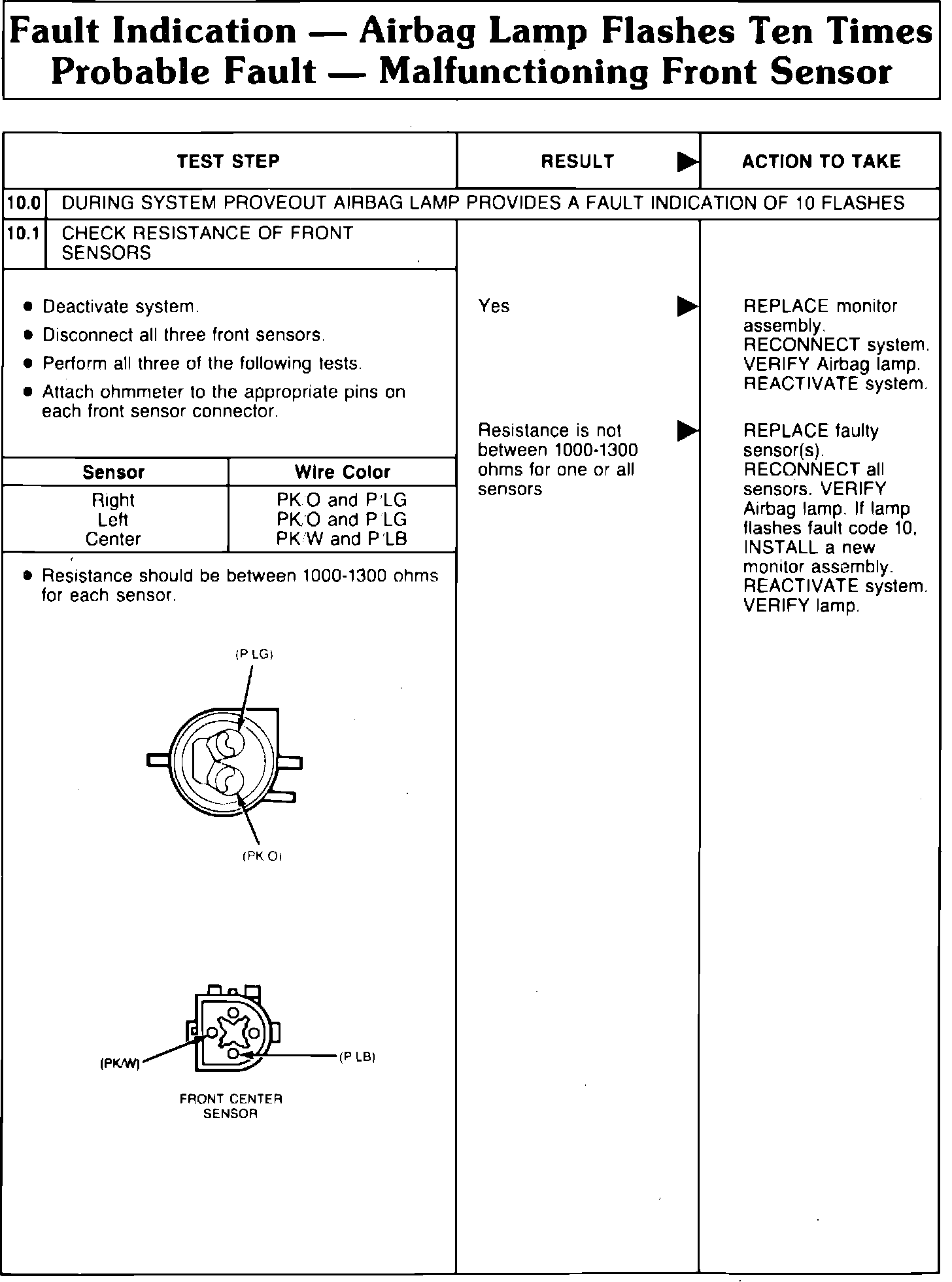

Fig. 10 Fault Indication - Airbag Lamp Flashes Ten Times. Probable Fault - Malfunctioning Front Sensor.(Part 35 of 37):
