Airbag Lamp Flashes Seven Times
>>
Test Step 7.2, 7.3
Test Step 7.2, 7.3

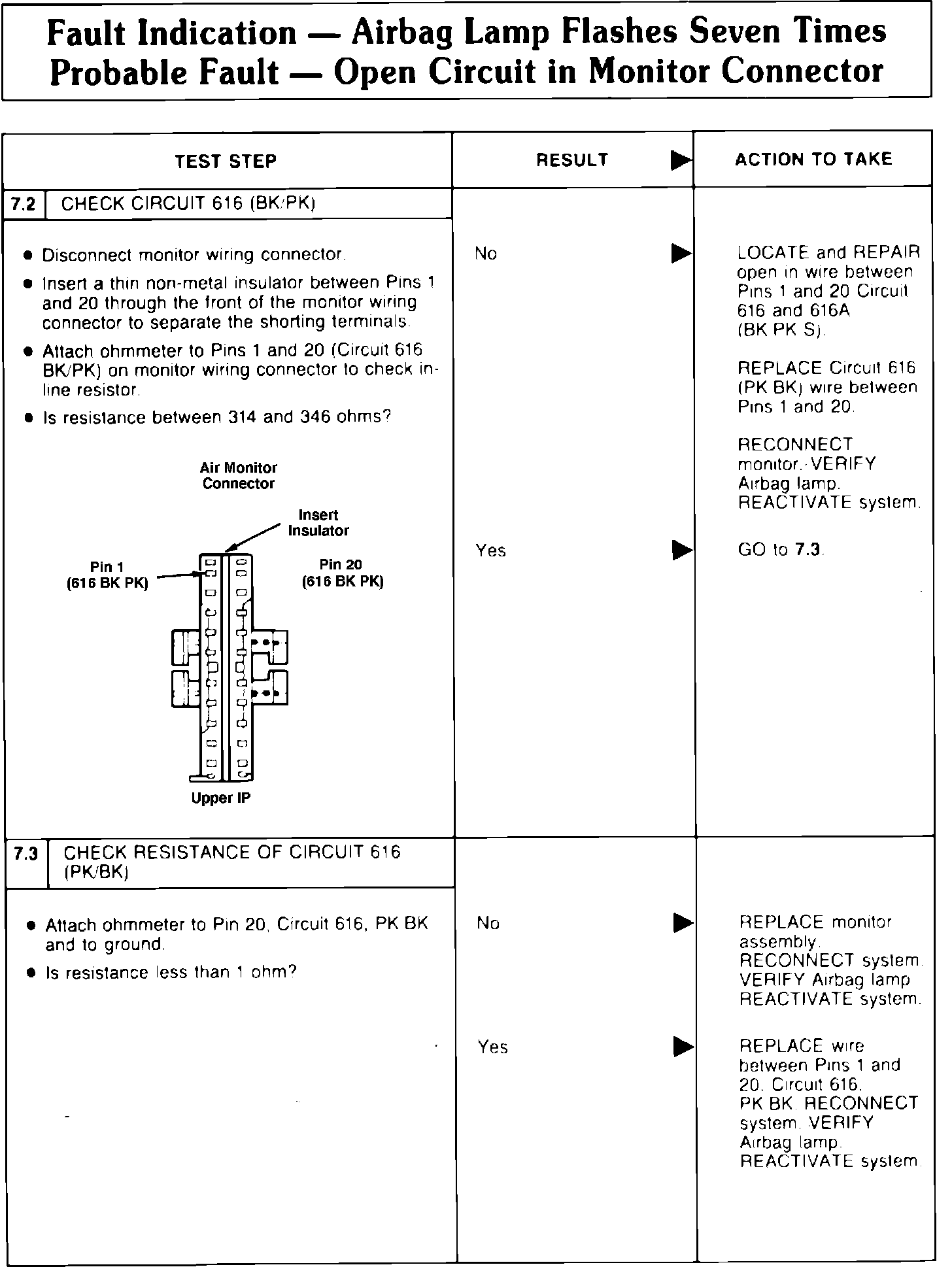

Fig. 10 Fault Indication - Airbag Lamp Flashes Seven Times. Probable Fault - Open Circuit in Monitor Connector.(Part 31 of 37):
