Airbag Lamp Flashes Four Times
>>
Test Step 4.18, 4.19
Test Step 4.18, 4.19

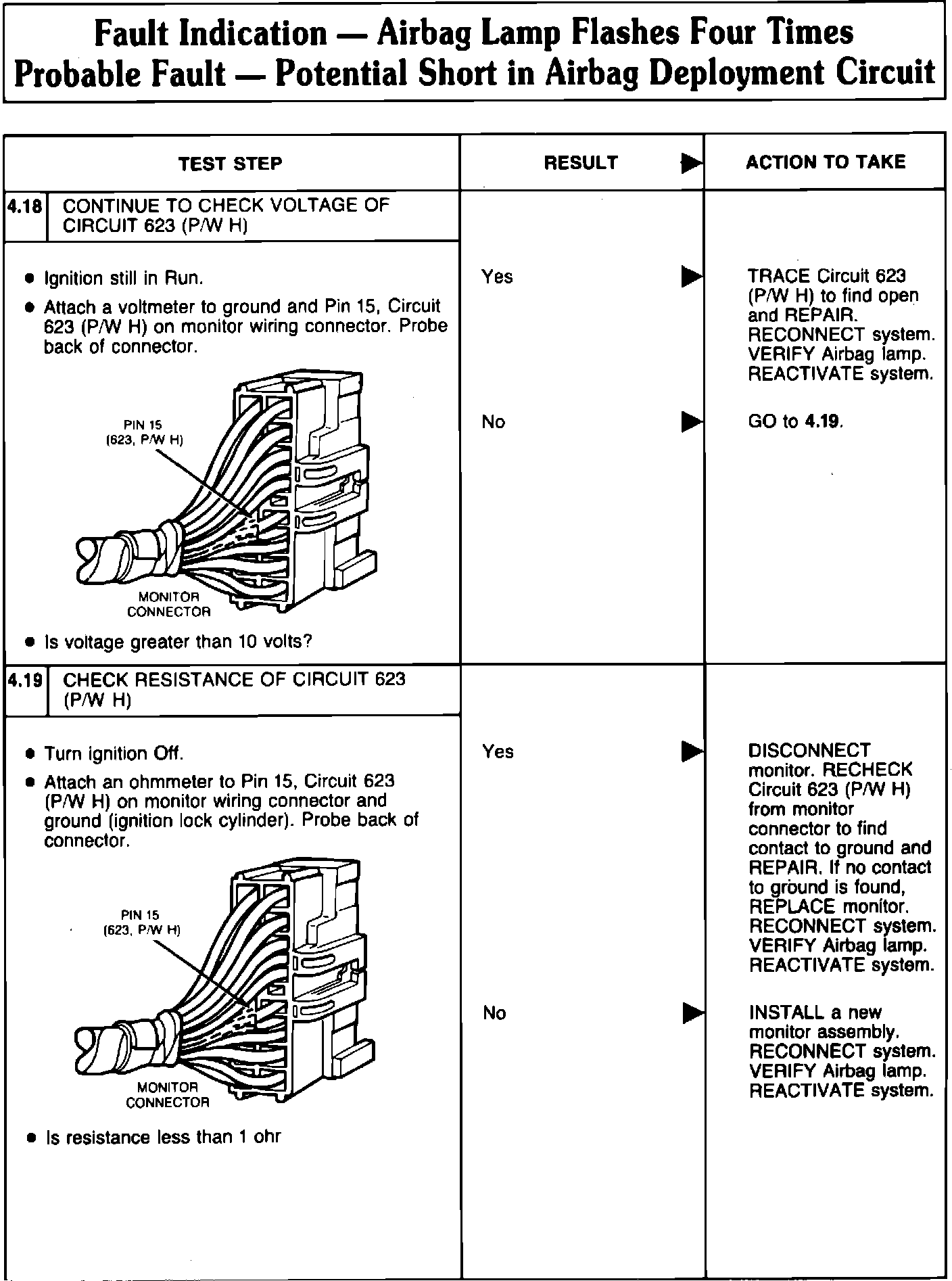

Fig. 10 Fault Indication - Airbag Lamp Flashes Four Times. Probable Fault - Potential Short in Airbag Deployment Circuit.(Part 23 of 37):
