Test Step 4.16, 4.17

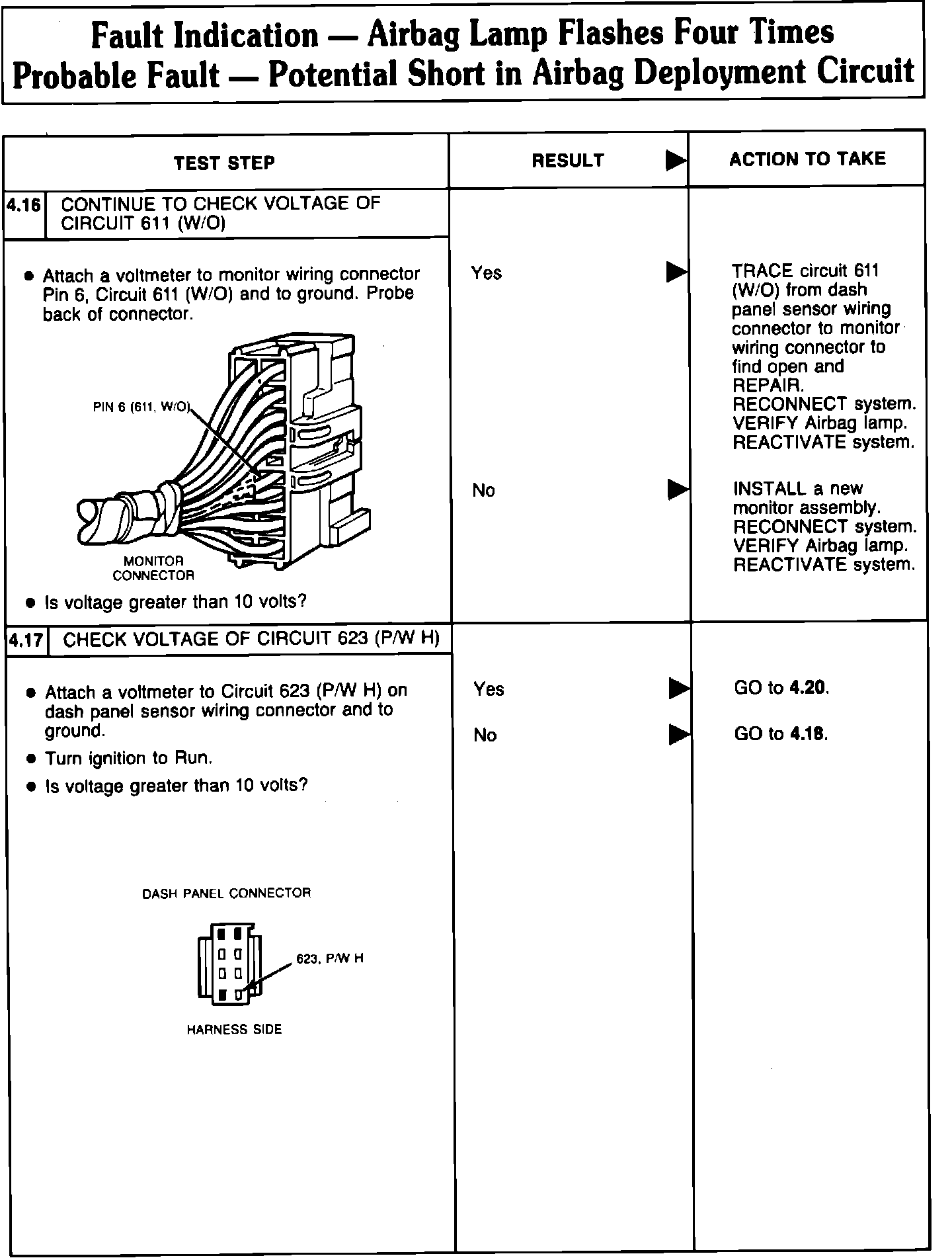

Fig. 10 Fault Indication - Airbag Lamp Flashes Four Times. Probable Fault - Potential Short in Airbag Deployment Circuit.(Part 22 of 37):
