Home >> Mercury >> 1988 >> Topaz AWD L4-140 2.3L HSO (VIN S) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> Airbag Lamp Flashes Four Times >> Test Step 4.10, 4.11

Test Step 4.10, 4.11

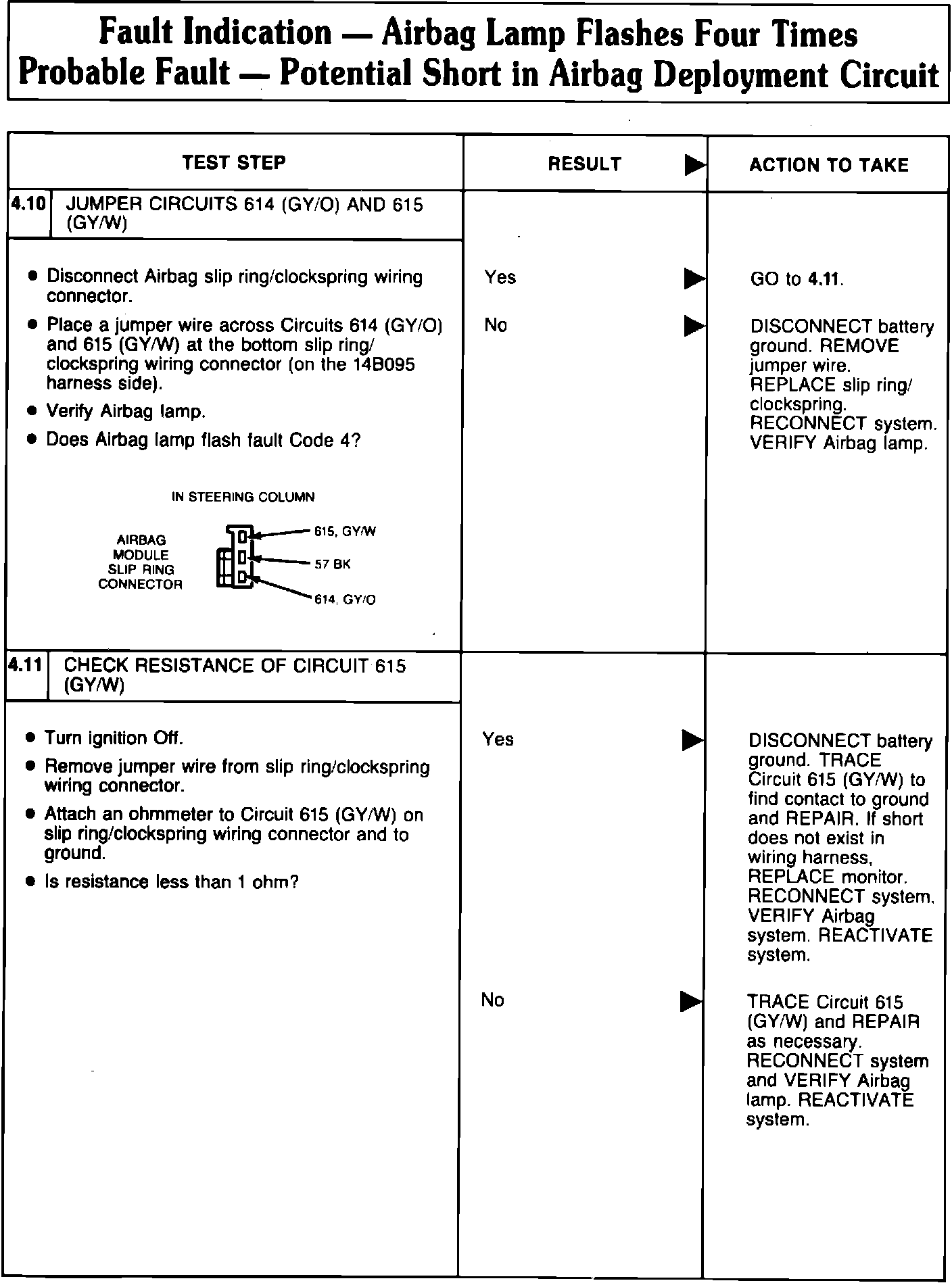

Fig. 10 Fault Indication - Airbag Lamp Flashes Four Times. Probable Fault - Potential Short in Airbag Deployment Circuit.(Part 19 of 37):
