Airbag Lamp Flashes Five Times
>>
Test Step 5.0, 5.1, 5.2
Test Step 5.0, 5.1, 5.2

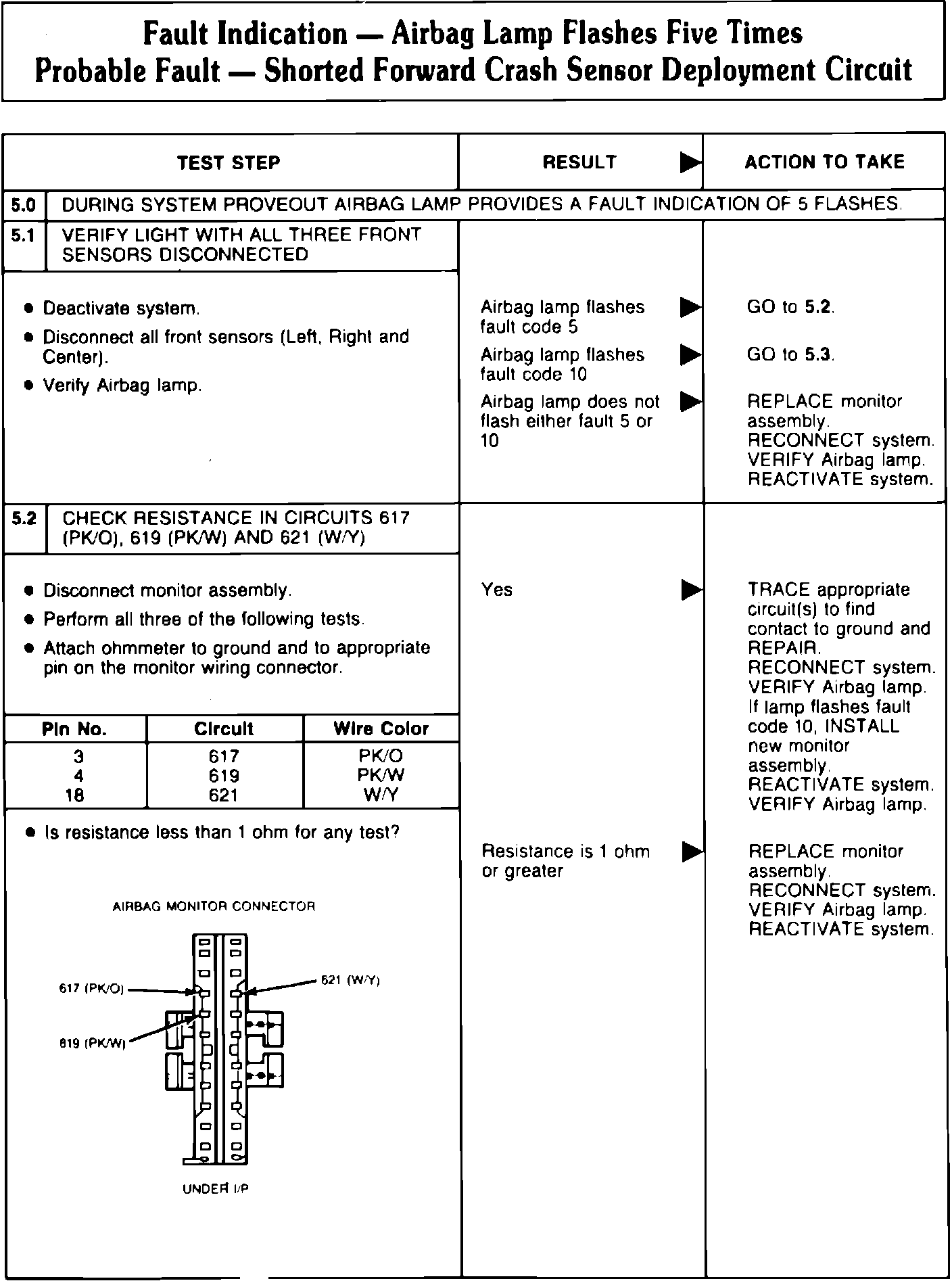

Fig. 10 Fault Indication - Airbag Lamp Flashes Five Times. Probable Fault - Shorted Forward Crash Sensor Deployment Circuit.(Part 26 of 37):
