Airbag Lamp Flashes Eleven Times
>>
Test Step 11.0, 11.1, 11.2
Test Step 11.0, 11.1, 11.2

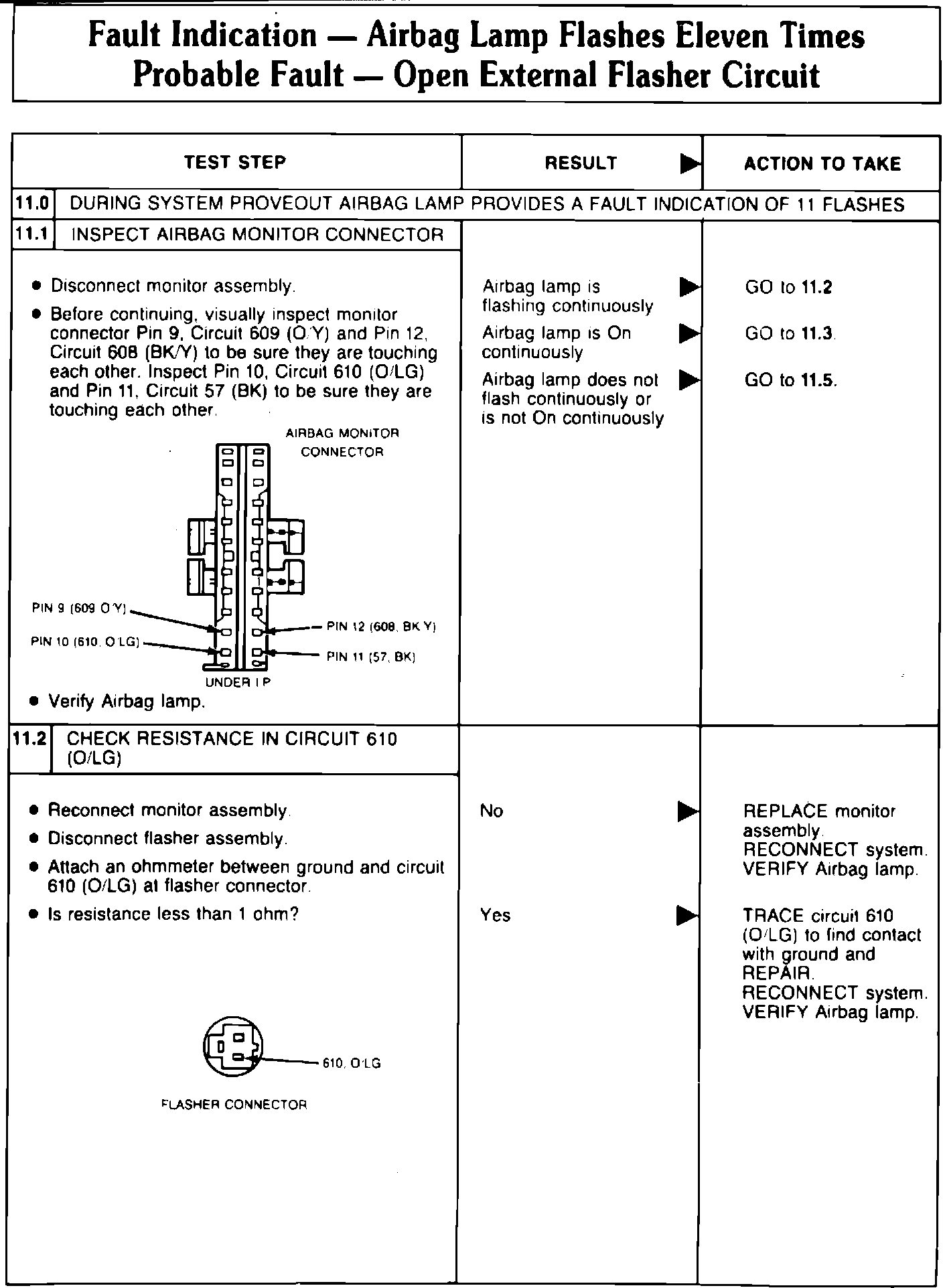

Fig. 10 Fault Indication - Airbag Lamp Flashes Eleven Times. Probable Fault - Open External Flasher Circuit.(Part 36 of 37):
