Airbag Lamp Flashes Eight Times
>>
Test Step 8.0, 8.1, 8.2, 8.3
Test Step 8.0, 8.1, 8.2, 8.3

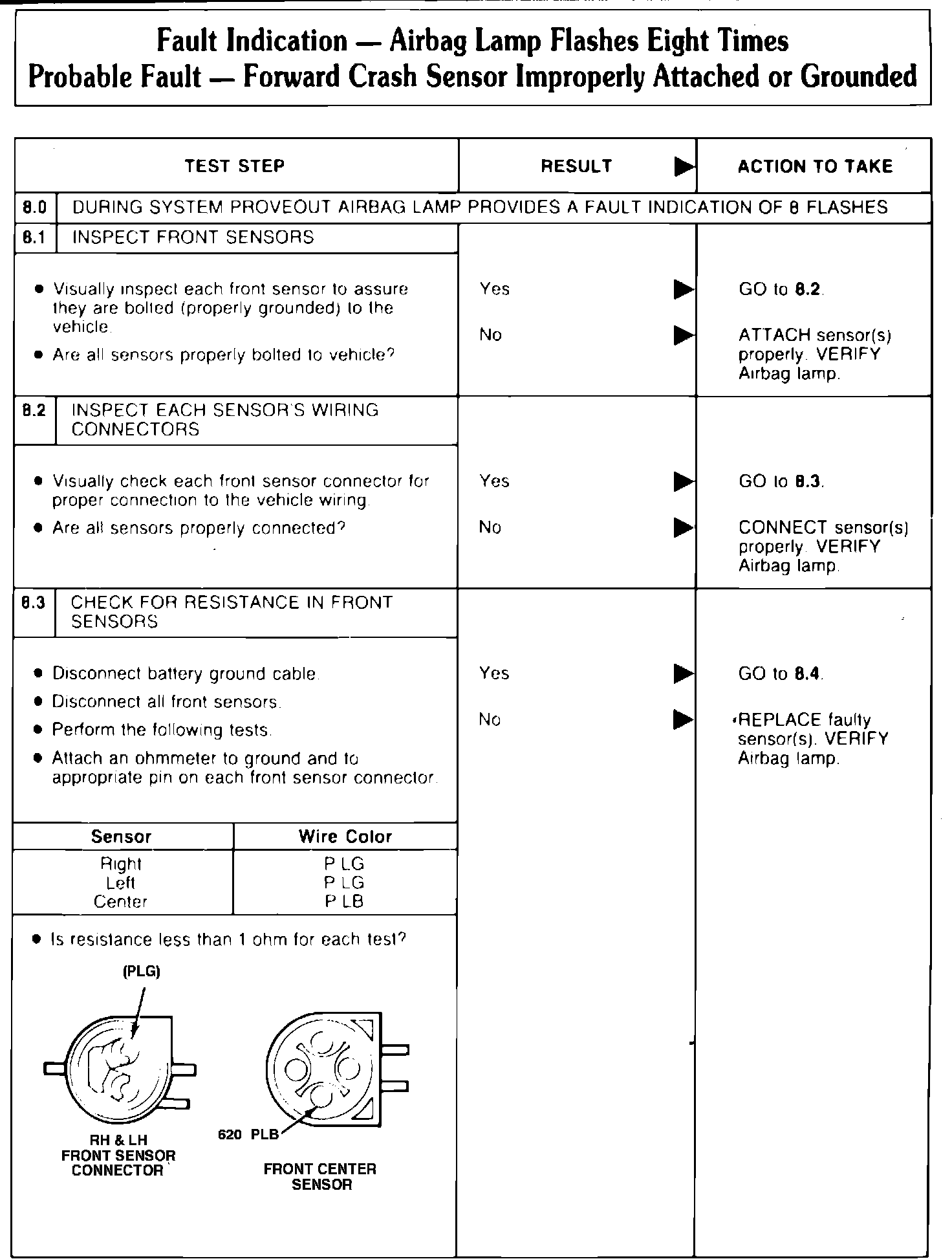

Fig. 10 Fault Indication - Airbag Lamp Flashes Eight Times. Probable Fault - Forward Crash Sensor Improperly Attached or Grounded.(Part 32 of 37):
