Radiator Cooling Fan Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
With A/C
With A/C

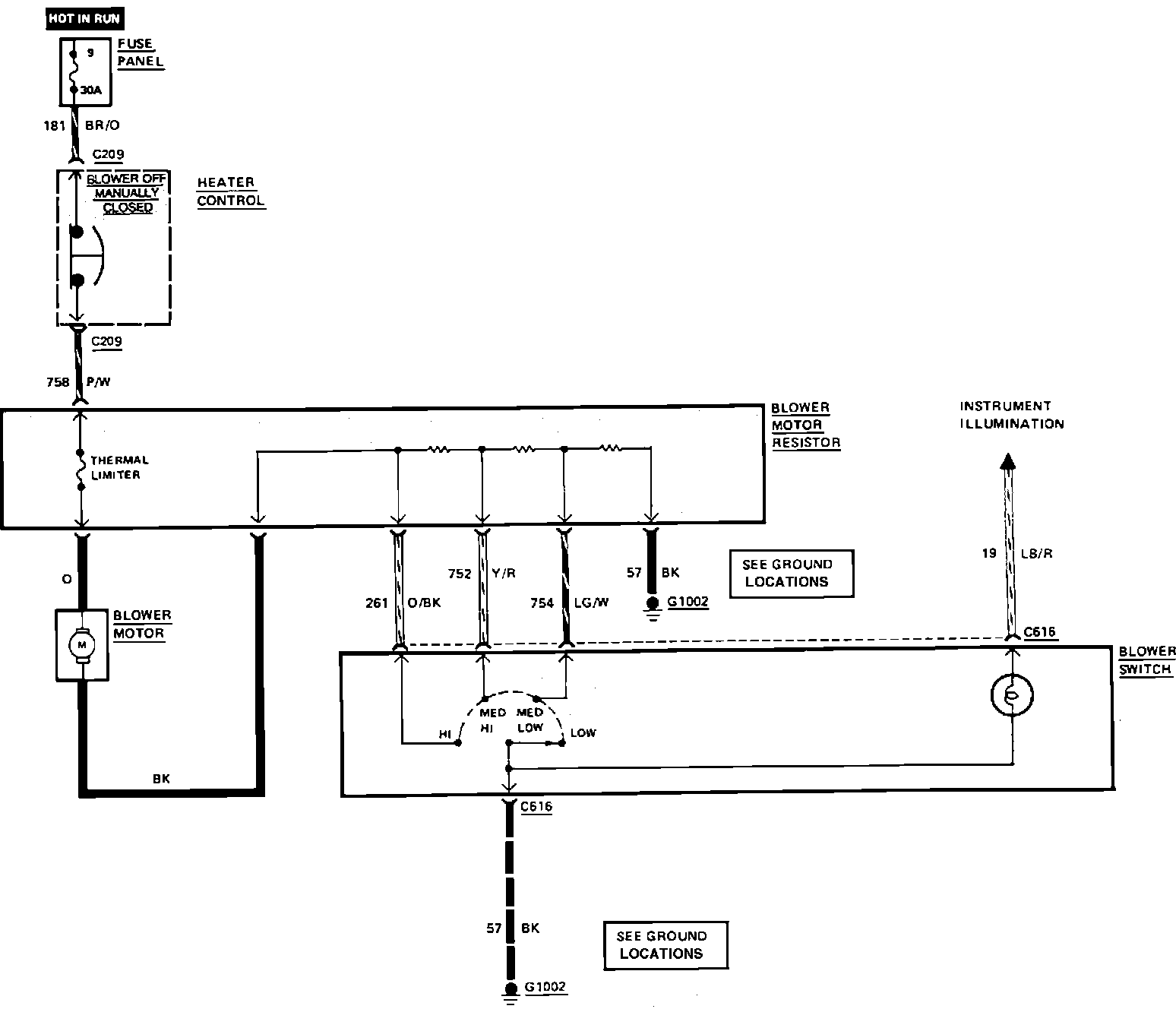

AIR CONDITIONING, HEATER & COOLING FAN WIRING CIRCUIT:

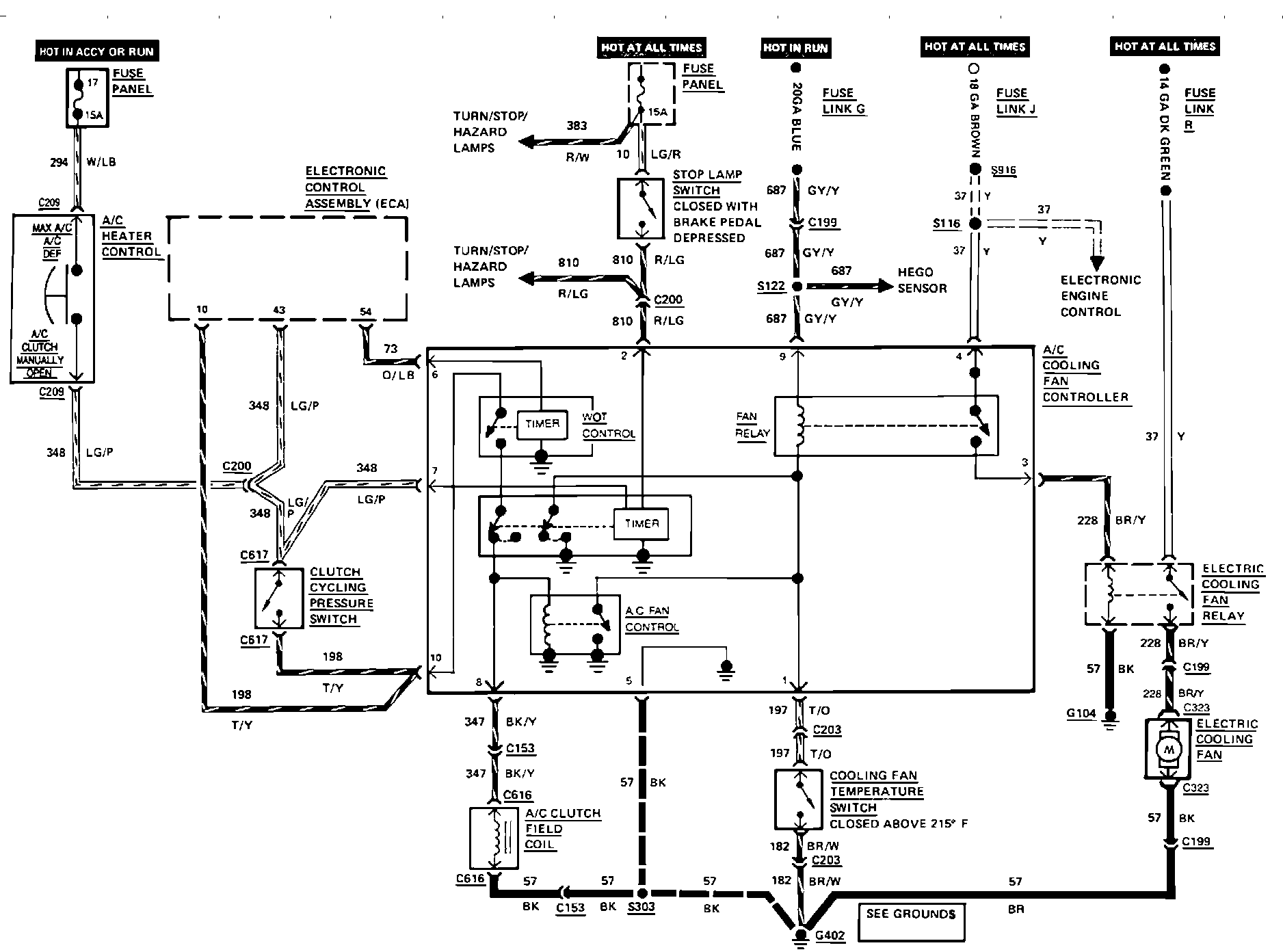

AIR CONDITIONING, HEATER & COOLING FAN WIRING CIRCUIT:
*** UPDATED BY TSB #9012B5 6-11-90
