With or Without Low Fuel Warning Lamp
With or Without Low Fuel Warning Lamp

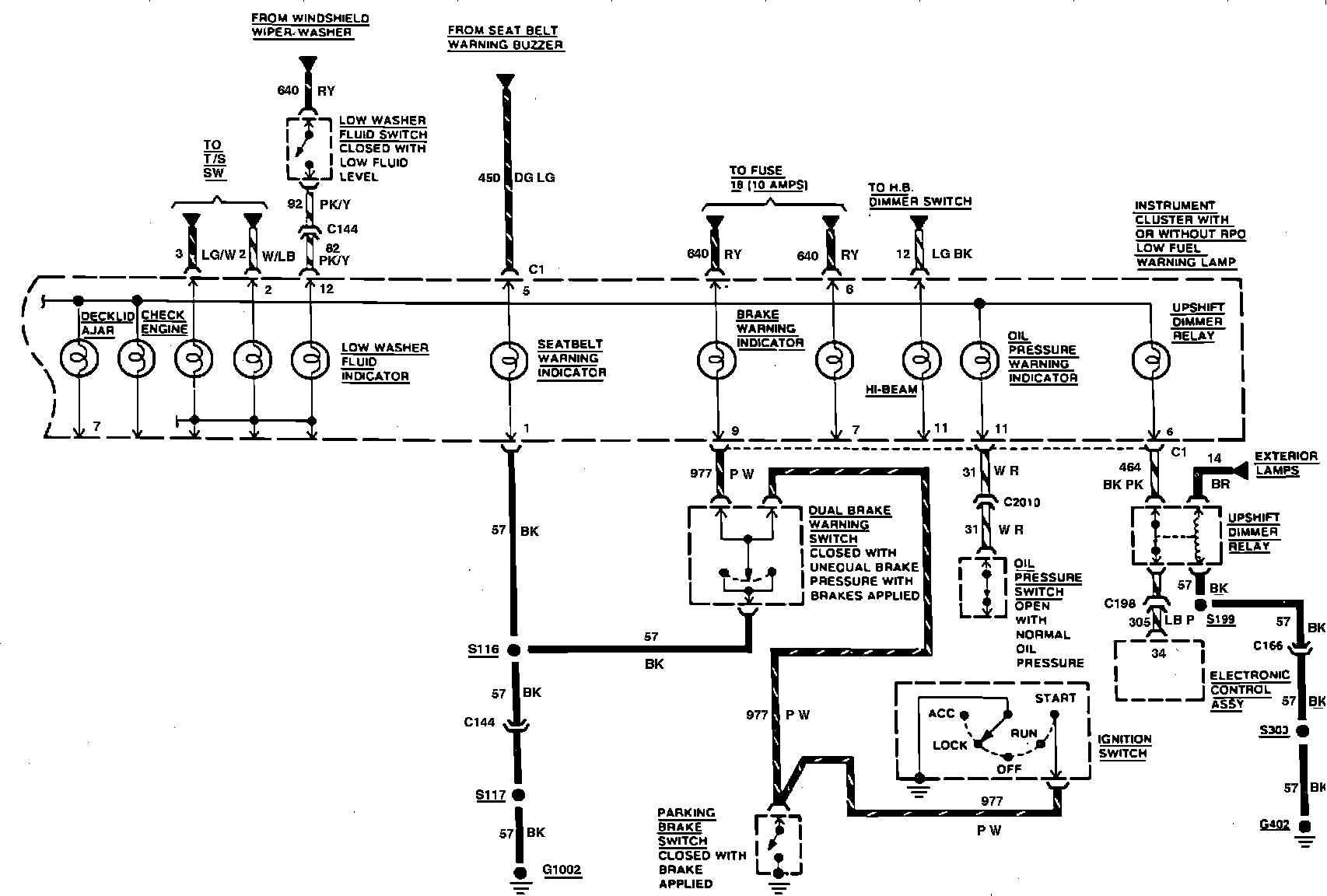

Warning Indicators Wiring Circuit. With Or Without Low Fuel Warning Lamp:
