With Low Fuel Warning Lamp
With Low Fuel Warning Lamp

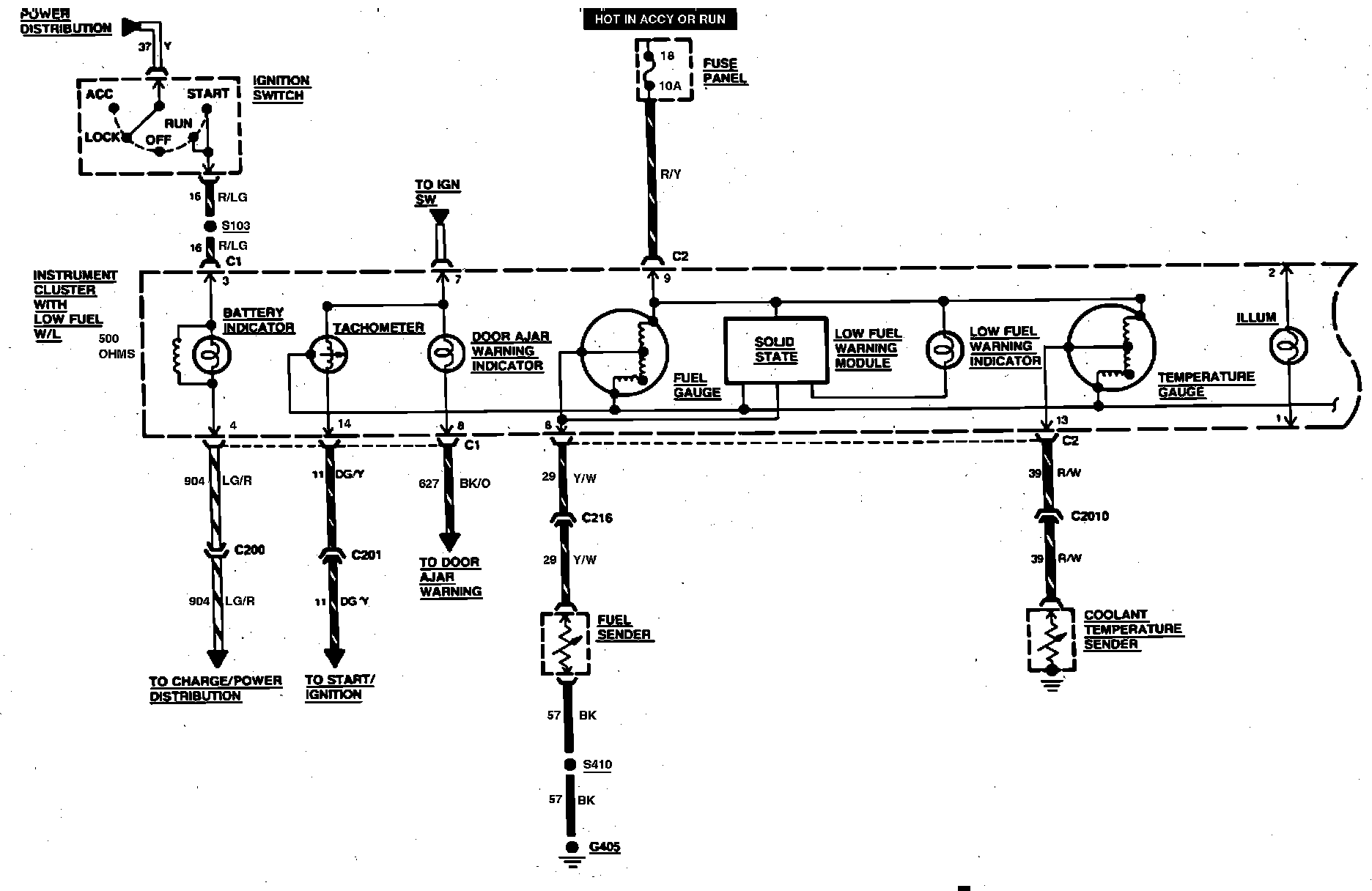

Warning Indicators Wiring Circuit. With Low Fuel Warning Lamp:
