Illuminated Entry
>>
Illuminated Entry System. With Power Locks and/or Power Windows
Illuminated Entry System. With Power Locks and/or Power Windows

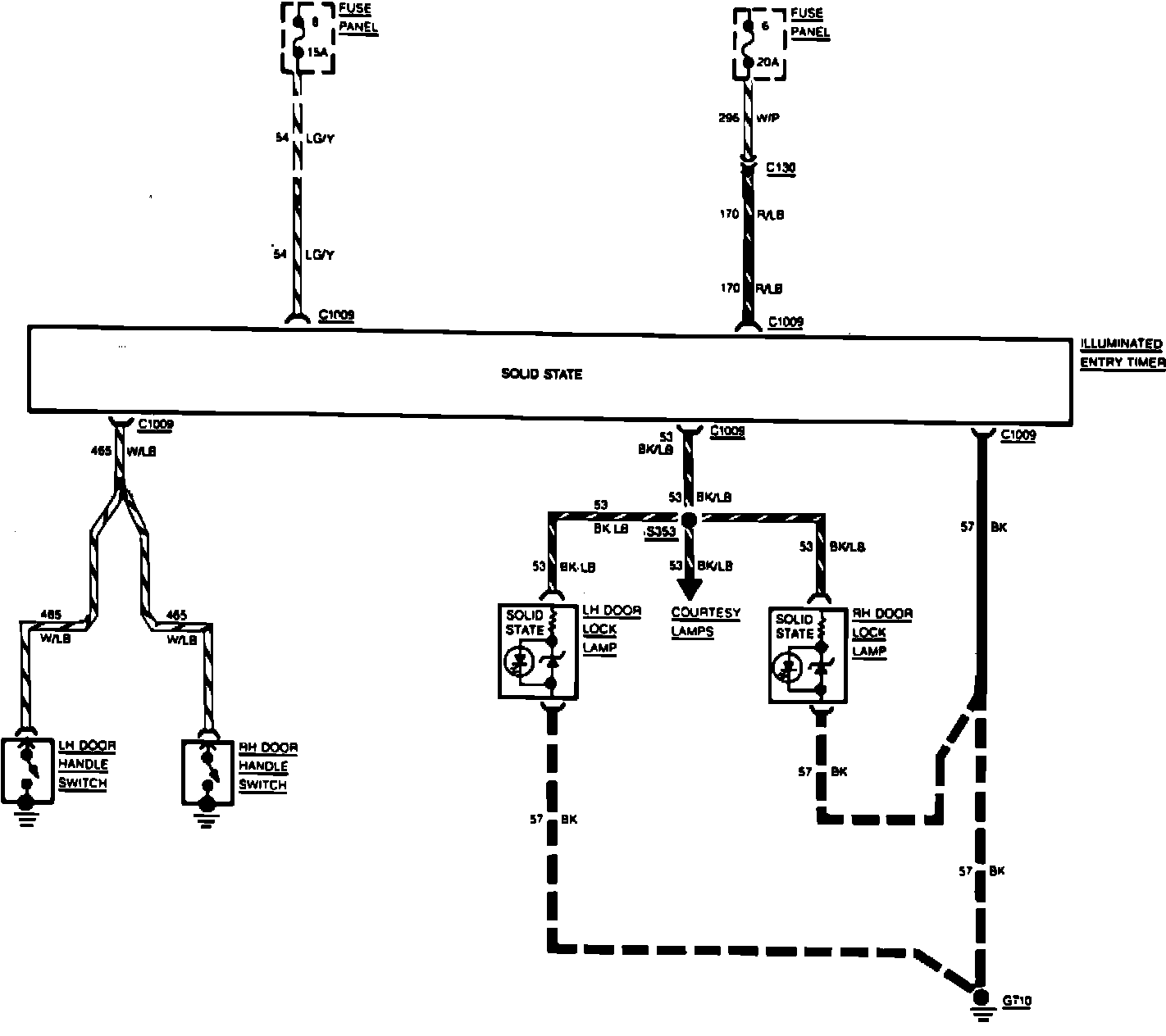

Fig. 29 Illuminated Entry System Wiring Circuit. With Power Locks And/Or Power Windows:
***UPDATED BY TSB #90-6B-27
