Fault Indication - Airbag Lamp Does Not Light
>>
Test Step A0, A1, A2, A3, A4
Test Step A0, A1, A2, A3, A4

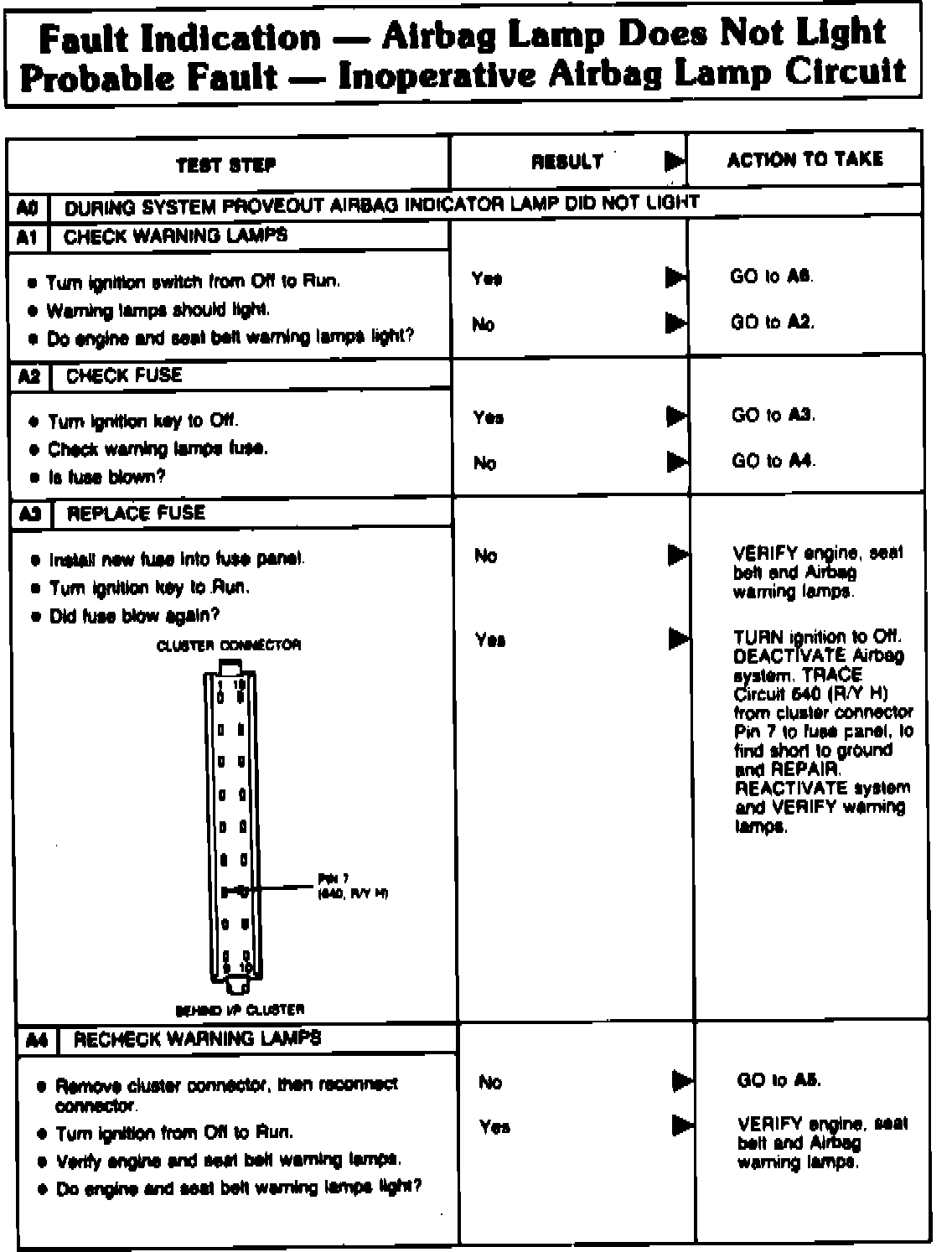

Fig. 10 Fault Indication - Airbag Lamp Does Not Light. Probable Fault - Inoperative Airbag Lamp Circuit.(Part 1 of 37):
