Mercury
>>
1988
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

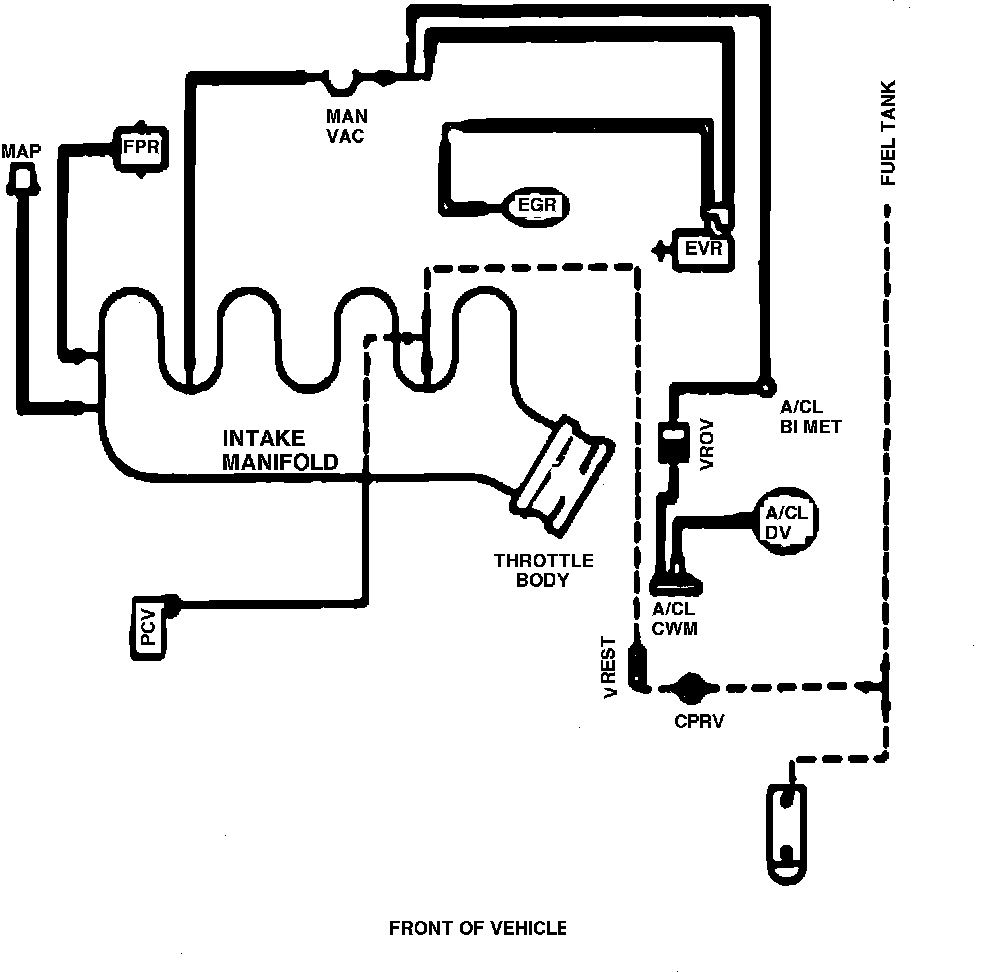

Fig. 7 Vacuum Hose Routing W/EFI, Calif.
Fig. 7 Vacuum Hose Routing W/EFI, Calif.
Fig. 7 Calib. Codes 8-25C-R00, 8-25F-R00, 8-25Q-R00, 8-26D-R10, 8-26E-R00, 8-26R-R00 & 8-26T-R10:
