Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

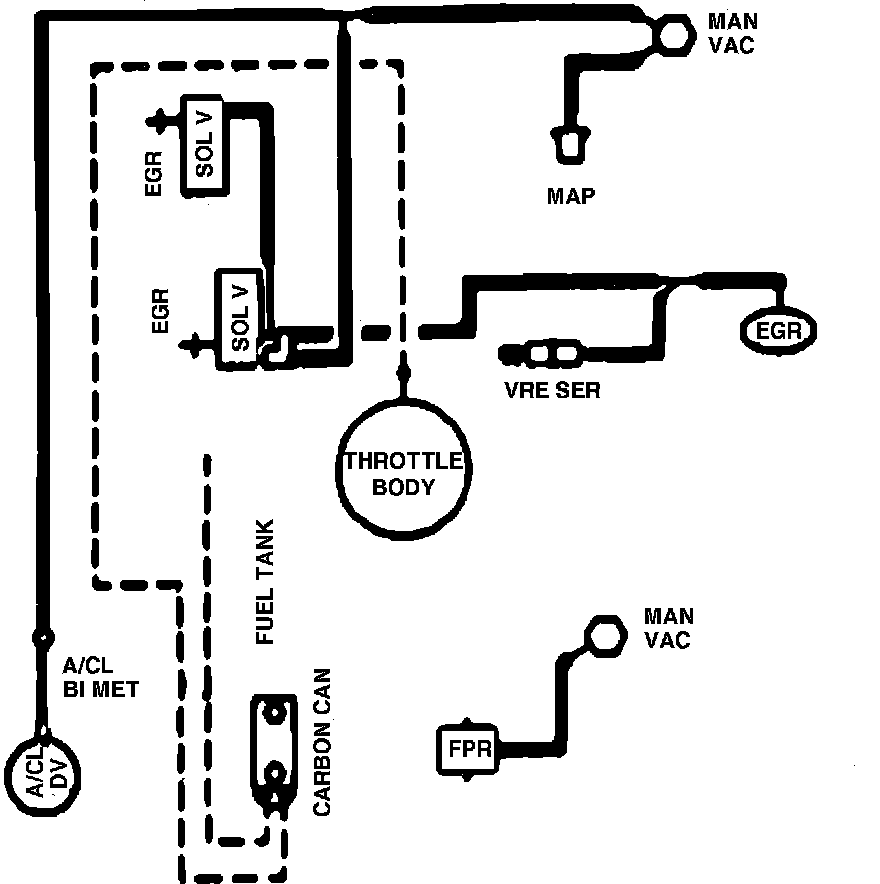

Fig. 6 Vacuum Hose Routing W/EFI, Except Calif.
Fig. 6 Vacuum Hose Routing W/EFI, Except Calif.
Fig. 6 Calib. Codes 7-05A-R11, 7-06A-R10, 8-05A-R10 & 8-06A-R10:
