Instrument Cluster Schematic - Manual Correction

89Ford10

INSTRUMENT CLUSTER - STANDARD - ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM) CORRECTION

Article No. 89-5A-11







FORD: 1988 TEMPO

LINCOLN-MERCURY: 1988 TOPAZ


ISSUE: The Instrument Cluster (Standard Cluster) schematic on page 69 of the 1988 Tempo/Topaz EVTM incorrectly shows the LH and RH Door Ajar Switches as "CLOSED WITH DOOR CLOSED".

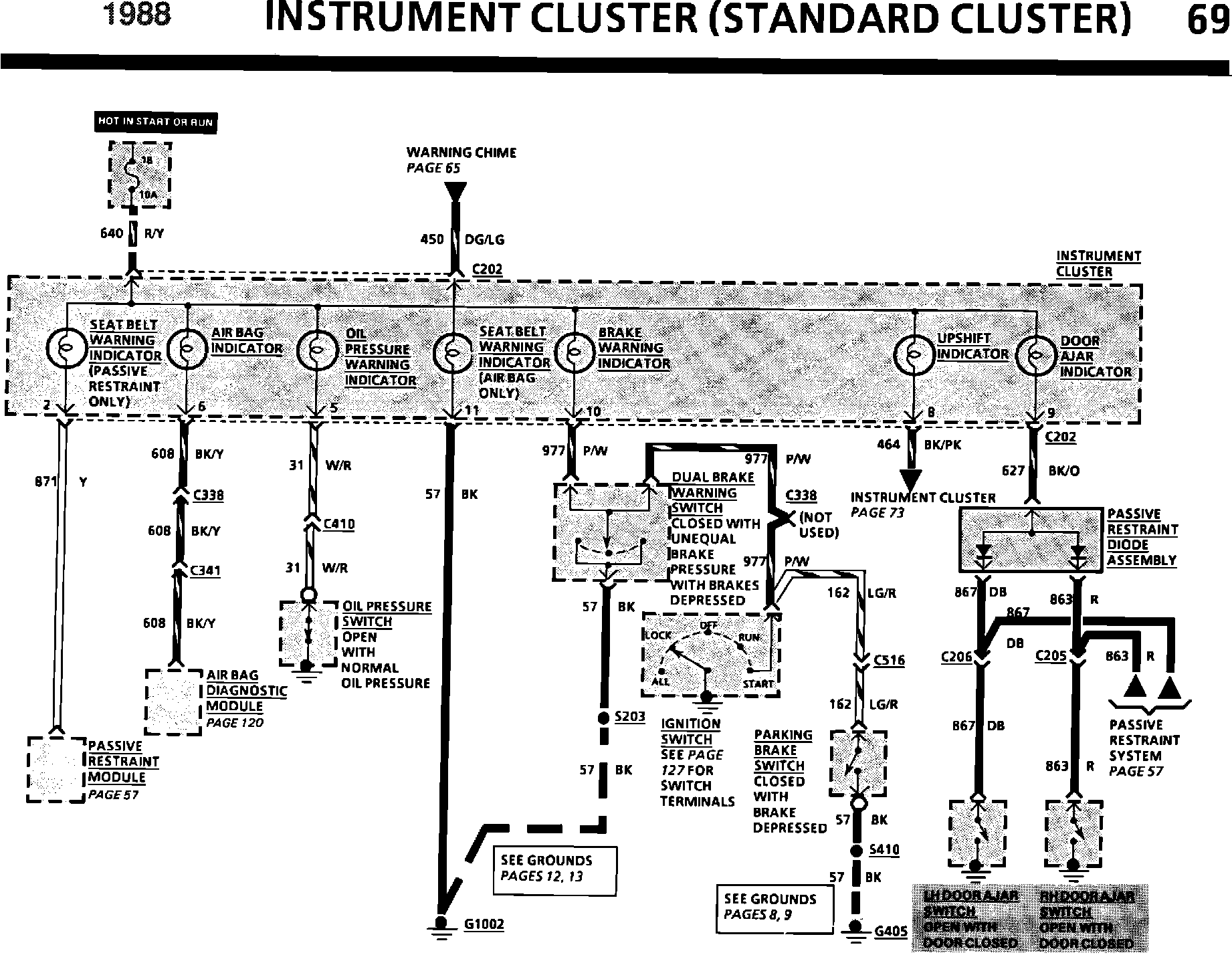

ACTION: The correct position of the switch should read "OPEN WITH DOOR CLOSED" as shown on the updated schematic on this TSB. This information should be inserted into your 1988 Tempo/Topaz EVTM, page 69.


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
OASIS CODES: 2800
