Home >> Mercury >> 1988 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams >> Four Door

Four Door

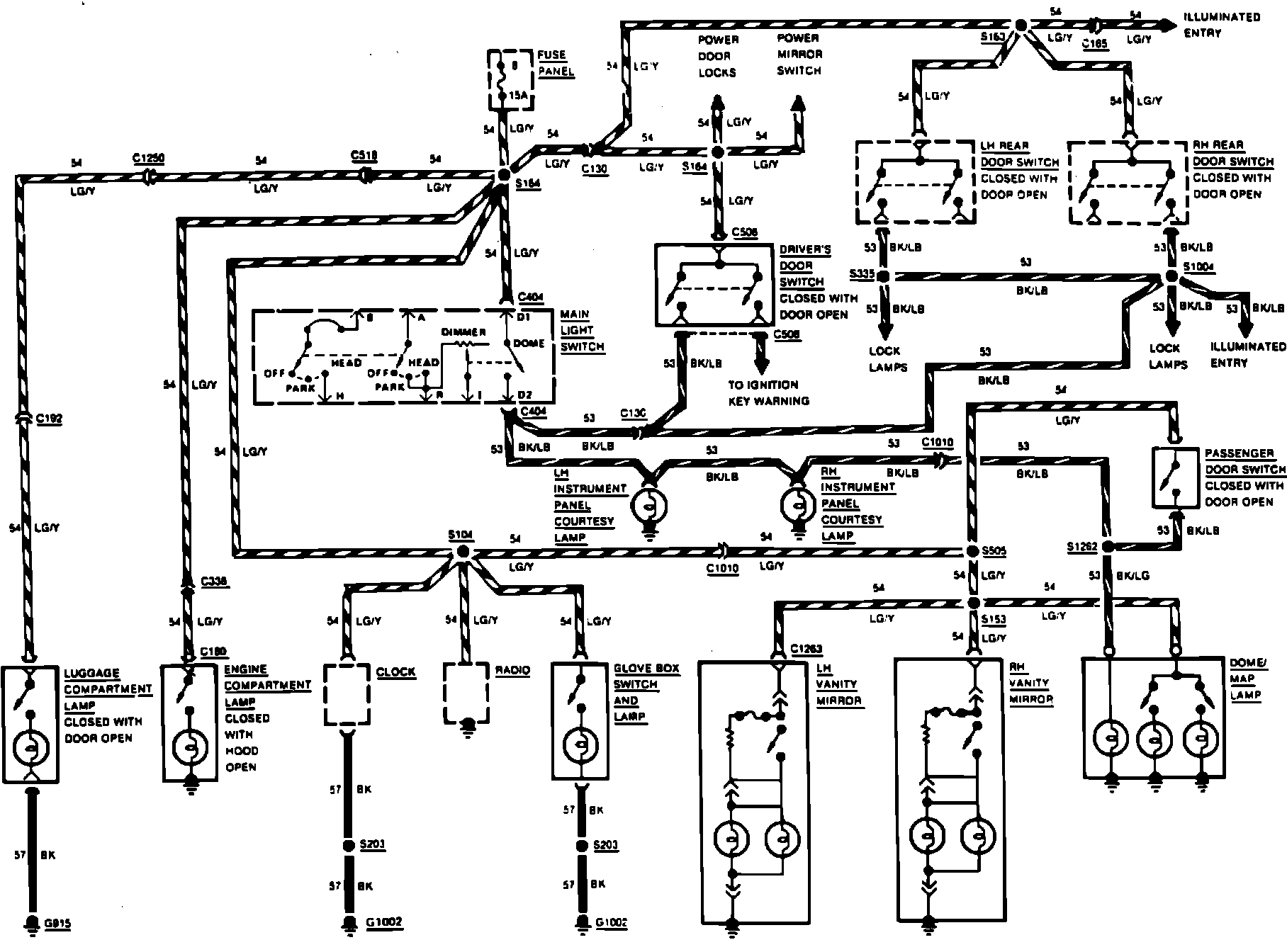

Fig. 10 Courtesy Lamps Wiring Circuit. 4 Door Models:
