Insufficient, Erratic, or No Heating
Insufficient, Erratic, or No Heating

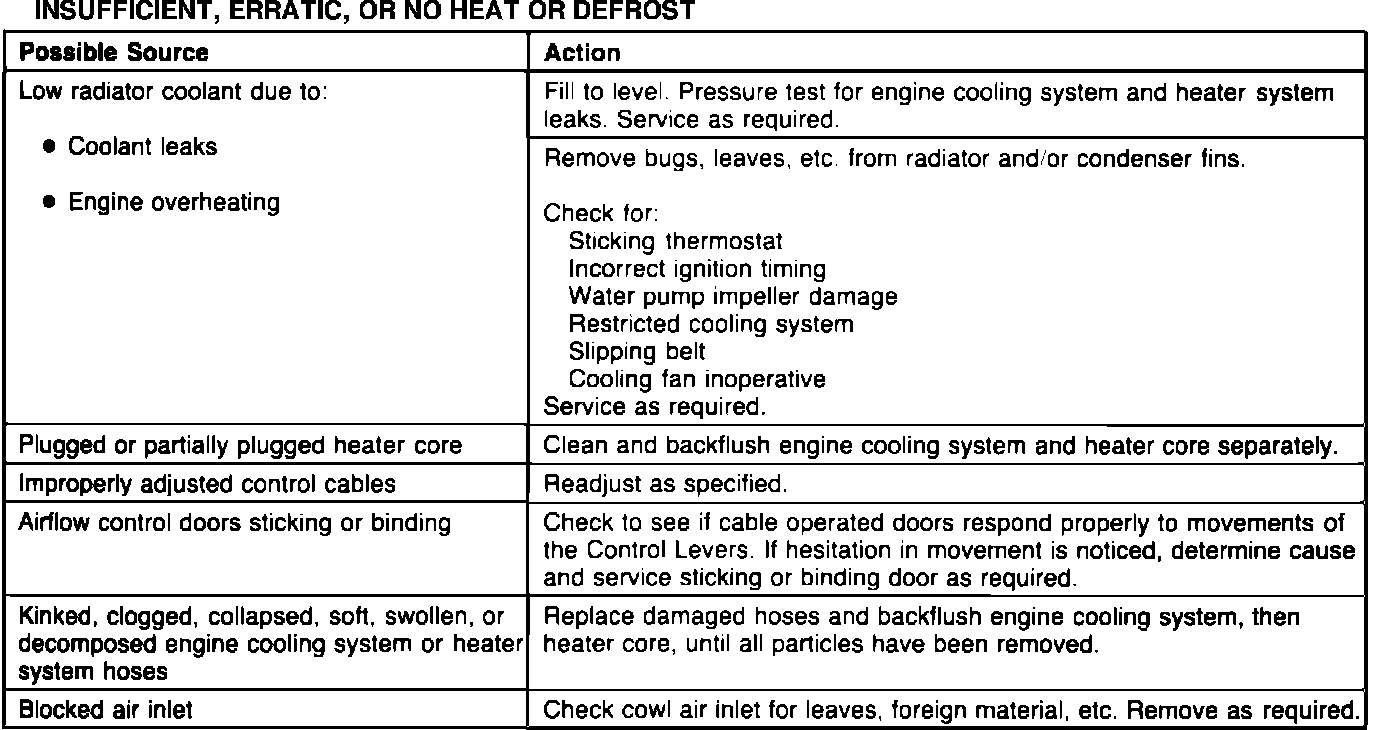

Fig. 3 Heating system diagnosis (Part 1 of 4).:
